Product Overview: AD9142BCPZ by Analog Devices Inc.

The AD9142BCPZ is a state-of-the-art Digital-to-Analog Converter (DAC) designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This product is part of the TxDAC+® series, which represents a line of high-speed, high-performance DACs that are ideal for a wide range of applications, including wireless infrastructure, instrumentation, and digital synthesis.

Key Features

• High Resolution: The AD9142BCPZ boasts a 16-bit resolution, providing precise digital-to-analog conversion for applications requiring high accuracy and detail.
• High Speed: With a maximum sampling rate of 1230 MSPS (Mega Samples Per Second), this DAC enables the generation of high-frequency signals with fast data throughput.
• Dual-Channel: It features a dual-channel architecture, allowing for the simultaneous output of two analog signals, which is beneficial for complex signal generation in I/Q modulation schemes.
• Integrated Features: The device includes integrated interpolation filters, which can reduce the data rate required from the host processor and simplify the digital interface and data routing.
• Programmable: The AD9142BCPZ offers a programmable modulus, which allows for flexible frequency planning and fine frequency resolution in synthesis applications.

Applications

The versatility of the AD9142BCPZ makes it suitable for a broad range of applications, including:

• Wireless communications infrastructure, such as base stations for 3G, 4G, and emerging 5G networks.
• High-speed instrumentation and automated test equipment (ATE).
• Digital synthesis and waveform generation, including medical ultrasound equipment and radar systems.
• Cable modem termination systems and broadband data communications.

Technical Specifications

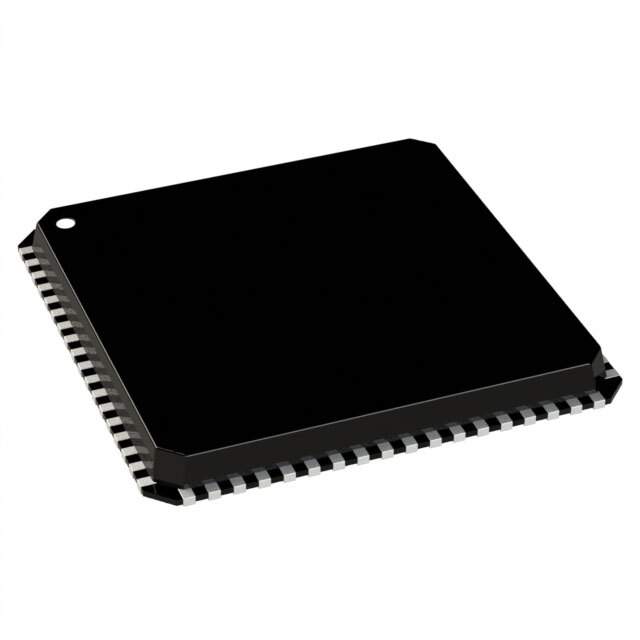

The AD9142BCPZ operates within an industrial temperature range and comes in a compact 72-lead LFCSP (Lead Frame Chip Scale Package) that is RoHS compliant. It requires a single 1.8V supply for the digital interface and a separate supply for the analog and digital circuitry, ensuring flexibility in system-level power supply design.

Further technical details, application notes, and support documentation for the AD9142BCPZ can be found on the Analog Devices Inc. website, ensuring that designers and engineers can fully utilize the capabilities of this high-performance DAC in their projects.
