Same model may have multiple batches, images only for reference.

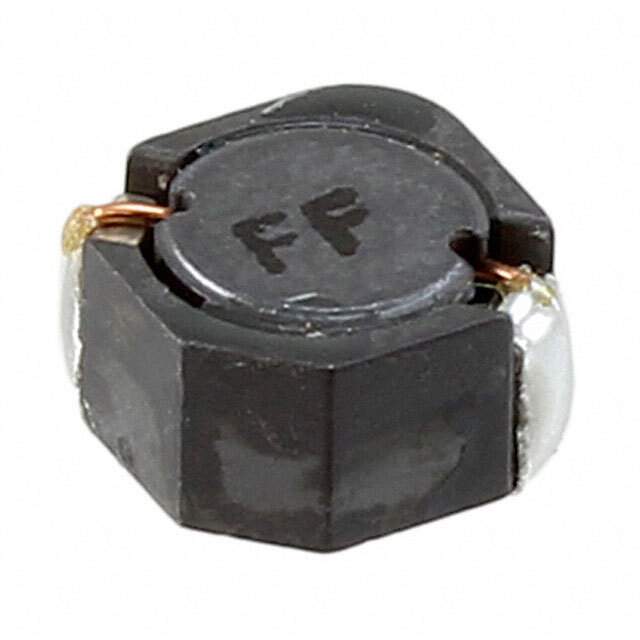

CDRH4D28CLDNP-4R7PC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D28CLDNP-4R7PC

Part No CDRH4D28CLDNP-4R7PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Inductor Power Shielded Drum Core 4.7uH 25% 100KHz Ferrite 2.9A 0.0363Ohm DCR T/R / FIXED IND 4.7UH 2.9A 36.3 MOHM
Datasheet
CDRH4D28CLDNP-4R7PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±25%
Current Rating 2.9A
Current - Saturation 1.5A
DC Resistance (DCR) 36.3 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 1028928-CDRH4D28CLDNP-4R7PC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CDRH4D28C/LD
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CDRH4D28CLDNP-4R7PC CAD Model

Description

The Sumida America Components Inc. This SMD (SMT) mounted component is part of the CDRH4D28C/LD family.

  • Manufacturer: Sumida America Components Inc.
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Family: CDRH4D28C/LD
  • Current Rating: 2.9A
  • Inductance: 4.7μH
  • Tolerance: ±25%
  • Height: 0.118" (3.00mm)
  • Material: Ferrite
  • DC Resistance (DCR): 36.3 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Estimated EOL Date: 2027
