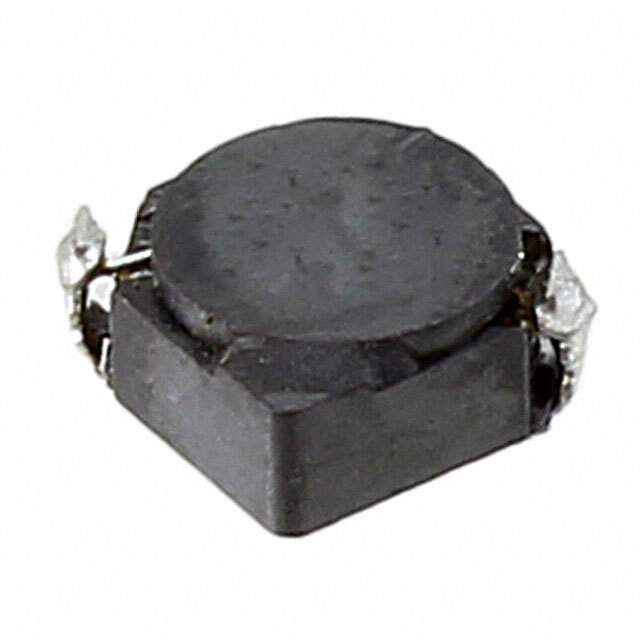

CDRH3D18NP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D18NP-4R7NC

Part No CDRH3D18NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Ferrite drum core construction.
Datasheet
CDRH3D18NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH3D18
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.35A
Current - Saturation 1.35A
Shielding Shielded
DC Resistance (DCR) 107.5 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 1160844-CDRH3D18NP-4R7NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH3D18
Introduction Date February 07, 2007
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH3D18NP-4R7NC CAD Model

Description

The Sumida America Components Inc. CDRH3D18NP-4R7NC is a high-performance shielded power inductor.

  • Material: Ferrite
  • Current Rating: 1.35A
  • Package: Nonstandard
  • Operating Temperature: -40°C to 105°C
  • Inductance: 4.7μH
  • Inductance Tolerance: ±30%
  • Series: CDRH3D18
  • Packaging: Reel
  • DC Resistance: 107.5 mOhm Max
  • Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Applications: Power Supplies, DC-DC Converters, and other electronic circuits
  • Manufacturer: Sumida America Components Inc.
