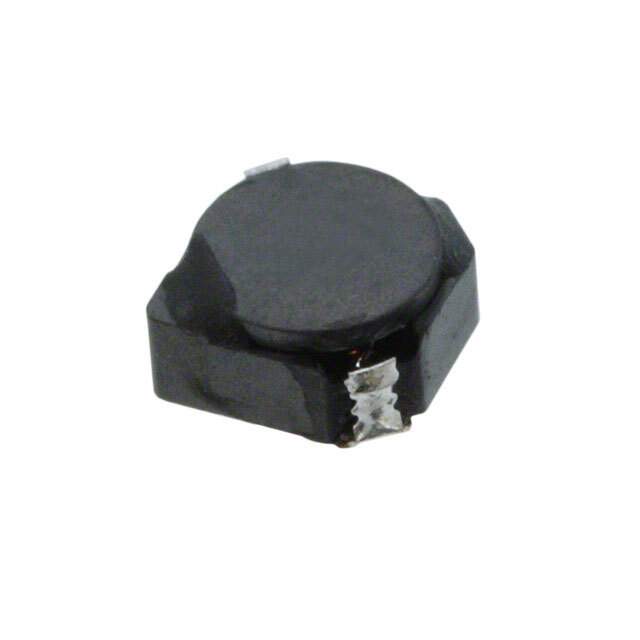

CDRH3D18NP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D18NP-220NC

Part No CDRH3D18NP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 600MA 424 MOHM
Datasheet
CDRH3D18NP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±30%
Current Rating 600mA
Current - Saturation 600mA
DC Resistance (DCR) 424 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 039886-CDRH3D18NP-220NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH3D18NP-220NC CAD Model

Description

CDRH3D18NP-220NC Inductor

The CDRH3D18NP-220NC is a high-performance inductor suited for various electronic applications. This component is designed to offer optimal efficiency and reliability in a compact package.

  • Features:
    • Compact design with a low profile
    • High current capacity
    • Low DCR for improved performance
  • Benefits:
    • Improves power supply efficiency
    • Enhances circuit reliability
    • Reduces overall system size
  • Applications:
    • Power supply circuits
    • DC-DC converters
    • Mobile devices and consumer electronics

    Additional Details: The CDRH3D18NP-220NC is manufactured with high-quality materials ensuring robust performance in demanding environments. Its compact size makes it an ideal choice for space-constrained projects.
