Same model may have multiple batches, images only for reference.

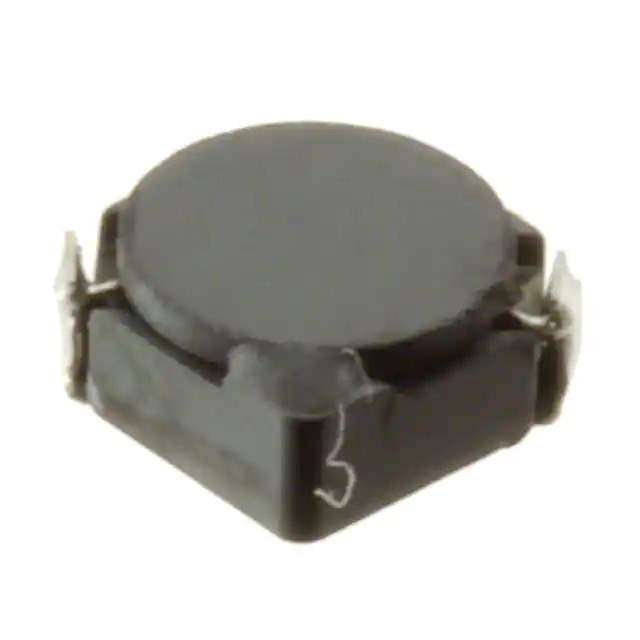

CDRH3D16NP-2R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D16NP-2R2NC

Part No CDRH3D16NP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 72 MOHM SMD
Datasheet
CDRH3D16NP-2R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH3D16
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 1.2 A
Shielding Shielded
DC Resistance (DCR) 72mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578155-CDRH3D16NP-2R2NC
Ultra Librarian 3D Model Ultra Librarian CDRH3D16NP-2R2NC CAD Model

Description

The CDRH3D16NP-2R2NC is a fixed inductor in the CDRH3D16 series.

  • Shielded: Yes
  • Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Inductance: 2.2 µH ±30%
  • Seated Height: 0.071" (1.80mm)
  • Mounting: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 72mOhm maximum
  • Temperature Range: -40°C to 100°C
  • Current Rating: 1.2 A
  • Inductance Frequency: 100 kHz
  • Manufacturer: Sumida America Components Inc.
  • Status: Active
