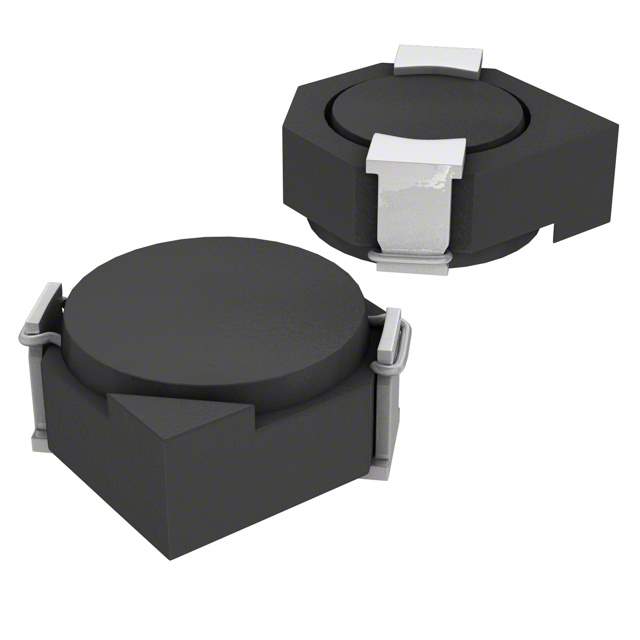

CDRH2D14NP-2R2NC Real Image CDRH2D14NP-2R2NC label picture CDRH2D14NP-2R2NC label picture 2
Same model may have multiple batches, images only for reference.
CDRH2D14NP-2R2NC Real Image CDRH2D14NP-2R2NC label picture CDRH2D14NP-2R2NC label picture 2
CDRH2D14NP-2R2NC Real Image CDRH2D14NP-2R2NC label picture CDRH2D14NP-2R2NC label picture 2
Same model may have multiple batches, images only for reference.

CDRH2D14NP-2R2NC

Part No CDRH2D14NP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.6A 94 MOHM SMD
Datasheet
CDRH2D14NP-2R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 1.6A
Current - Saturation 1.5A
DC Resistance (DCR) 94 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.043" (1.10mm)
Win Source Part Number 050220-CDRH2D14NP-2R2NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH2D14NP-2R2NC CAD Model

Description

CDRH2D14NP-2R2NC

The CDRH2D14NP-2R2NC stands out for its superior energy storage capabilities, facilitating smooth circuit performance in high-demand situations. Designed for applications that require steady current flow and reliability, this inductor is a key component in achieving electronic stability.

Features and Benefits

  • Superior energy storage
  • Steady current flow
  • Best suited for efficient energy utilization
  • Optimum thermal management

Applications

  • Power management systems
  • LED drivers
  • Battery-powered equipment
  • Navigation systems

An essential component for projects prioritizing energy efficiency and consistent power output.
