Same model may have multiple batches, images only for reference.

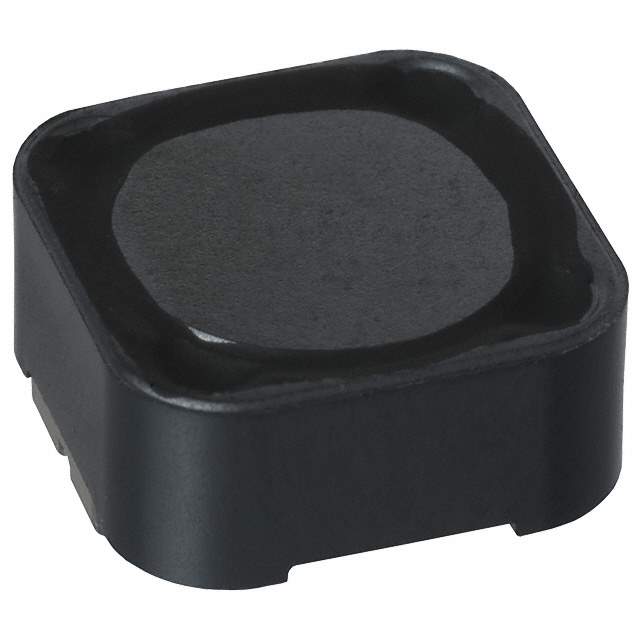

CDRH125NP-3R1NC Real Image
Same model may have multiple batches, images only for reference.

CDRH125NP-3R1NC

Part No CDRH125NP-3R1NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.1UH 6A 17 MOHM SMD / 3.1 µH Shielded Inductor 6 A 17mOhm Max Nonstandard
Datasheet
CDRH125NP-3R1NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH125
Package Tape & Reel (TR)
Inductance 3.1 µH
Tolerance -20%, +30%
Current Rating (Amps) 6 A
Shielding Shielded
DC Resistance (DCR) 17mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CDRH125NP-3R1NCTR
Standard Package 500
Win Source Part Number 982205-CDRH125NP-3R1NC
Ultra Librarian 3D Model Ultra Librarian CDRH125NP-3R1NC CAD Model

Description

The CDRH125NP-3R1NC is a shielded fixed inductor from Sumida America Components Inc.

  • Inductance: 3.1 µH
  • Tolerance: -20%, +30%
  • DC Resistance: 17mOhm Max
  • Current Rating: 6 A
  • Package: Tape & reel (TR)
  • Mounting Type: SMD (SMT)
  • Product: Non-standard
  • Temperature Range: -40°C to 100°C
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Alternative: CDRH125NP-3R1NCTR
  • Saturation Current: No saturation current
