Same model may have multiple batches, images only for reference.

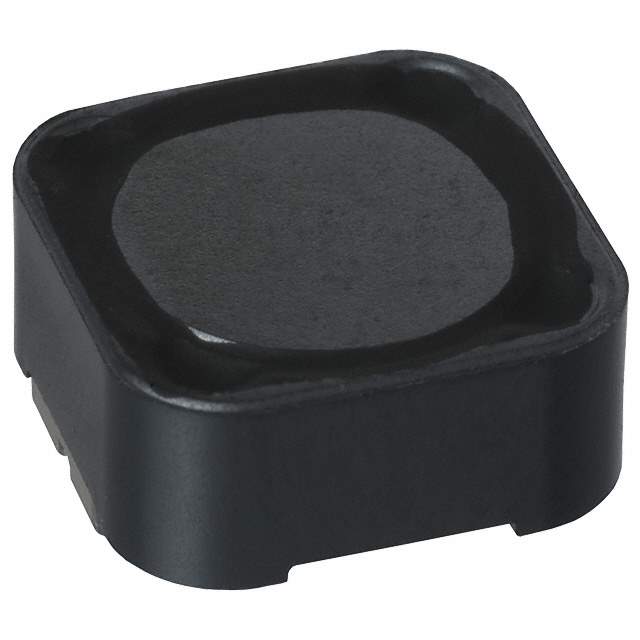

CDRH125NP-221MC Real Image
Same model may have multiple batches, images only for reference.

CDRH125NP-221MC

Part No CDRH125NP-221MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 800MA 400 MOHM / Inductor Power Shielded Drum Core 220uH 20% 1KHz Ferrite 1.56A 0.4Ohm DCR T/R
Datasheet
CDRH125NP-221MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH125
Packaging Reel package
Inductance 220μH
Tolerance ±20%
Current Rating 800mA
Shielding Shielded
DC Resistance (DCR) 400 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Win Source Part Number 771455-CDRH125NP-221MC
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH125
Introduction Date March 25, 2009
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CDRH125NP-221MC CAD Model

Description

The Sumida America Components Inc. CDRH125NP-221MC is a high-performance power inductor designed for use in a variety of electronic applications.

  • Current Rating: 800mA
  • Inductance: 220μH
  • Shielding: Shielded
  • Tolerance: ±20%
