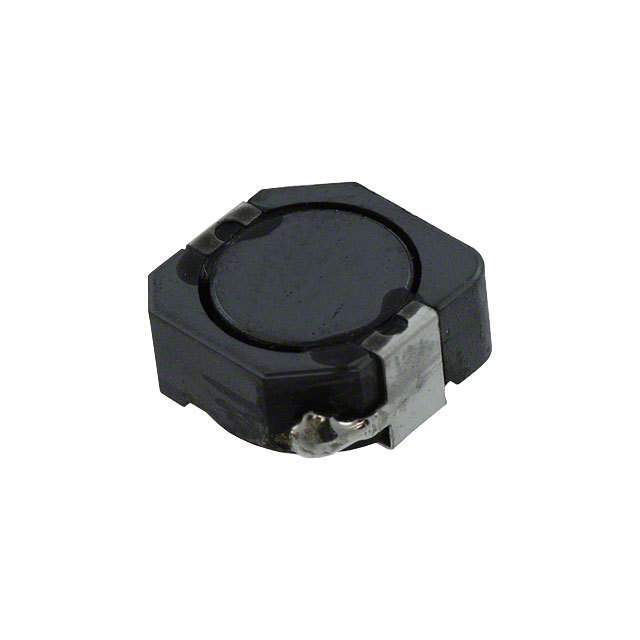

Same model may have multiple batches, images only for reference.

CDRH105RNP-221NC

Name: CDRH105RNP-221NC
Brand: Sumida America Components Inc.
SKU: 771452
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CDRH105RNP-221NC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 220UH 940MA 500 MOHM / Inductor Power Shielded Drum Core 220uH 30% 100KHz Ferrite 0.94A 0.5Ohm DCR T/R
Datasheet	CDRH105RNP-221NC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Sumida America Components Inc.
Series	CDRH105R
Packaging	Reel package
Material - Core	Ferrite
Inductance	220μH
Tolerance	±30%
Current Rating	940mA
Current - Saturation	940mA
Shielding	Shielded
DC Resistance (DCR)	500 mOhm Max
Operating Temperature Range	-40°C ~ 100°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum)	0.205" (5.20mm)
Win Source Part Number	771452-CDRH105RNP-221NC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CDRH105R
Introduction Date	December 14, 2004
ECCN	EAR99
Halogen Free	Not Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian CDRH105RNP-221NC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CDRH105RNP-221NC is a shielded inductor with a surface mount device (SMD) mounting style.

Operating Temperature Range: -40°C to 100°C
Package: Nonstandard
Tolerance: ±30%
Inductance: 220µH
Maximum Current Rating: 940mA
Core Material: Ferrite
DC Resistance (DCR): 500 mOhm Max
Dimensions: 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height Seated (Maximum): 0.205" (5.20mm)
Family: CDRH105R
Category: Inductor, Coil, or Choke
Alternative Parts: SLF1045T-221M-N, #B966BS-221M, NPIS14H221MTRF, CLF10040T-221M-H
Estimated EOL Date: 2025
