Same model may have multiple batches, images only for reference.

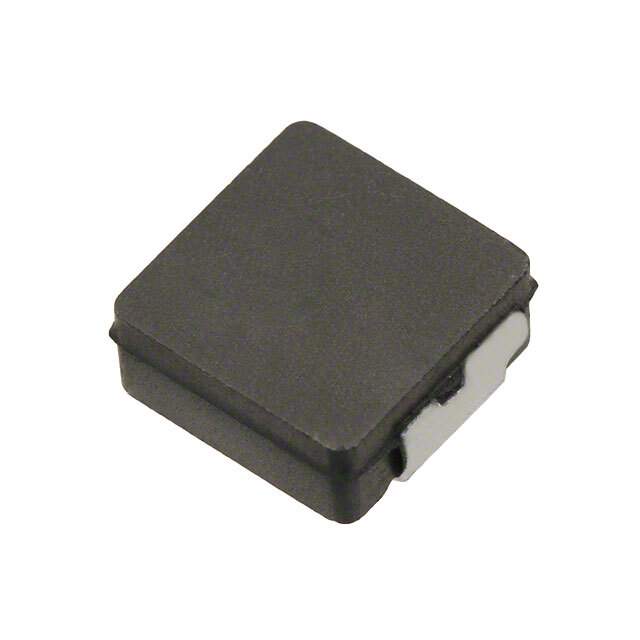

CDMC6D28NP-R20MC Real Image
Same model may have multiple batches, images only for reference.

CDMC6D28NP-R20MC

Part No CDMC6D28NP-R20MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 200NH 17.4A 2.5 MOHM
Datasheet
CDMC6D28NP-R20MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Balance
Popularity Medium
Win Source Part Number 050203-CDMC6D28NP-R20MC
Height - Seated (Max) 0.118" (3.00mm)
Mounting SMD (SMT)
Frequency - Test 1MHz
Temperature Range - Operating -40°C to 125°C
DC Resistance (DCR) 2.5 mOhm Max
Current - Saturation 21.7A
Current Rating 17.4A
Tolerance ±20%
Inductance 200nH
Material - Core Metal Composite
Status Active
Packaging Reel - TR
Manufacturer Sumida America Components Inc.
Categories Inductors, Coils, Chokes
Ultra Librarian 3D Model Ultra Librarian CDMC6D28NP-R20MC CAD Model

Description

CDMC6D28NP-R20MC SMD Inductor

The CDMC6D28NP-R20MC is a surface-mount (SMD) inductor, ideal for miniaturized electronic applications. Its robust construction and stable properties make it perfect for precision circuit designs.

  • Applications: Telecommunications, Industrial electronics, Computing devices
  • Features: Surface-mount capability, High inductance stability, Durable construction
  • Benefits: Simplifies circuit board designs, Consistent performance under load

    • Additional Details: The inductor's design minimizes electromagnetic interference and cross talk.
