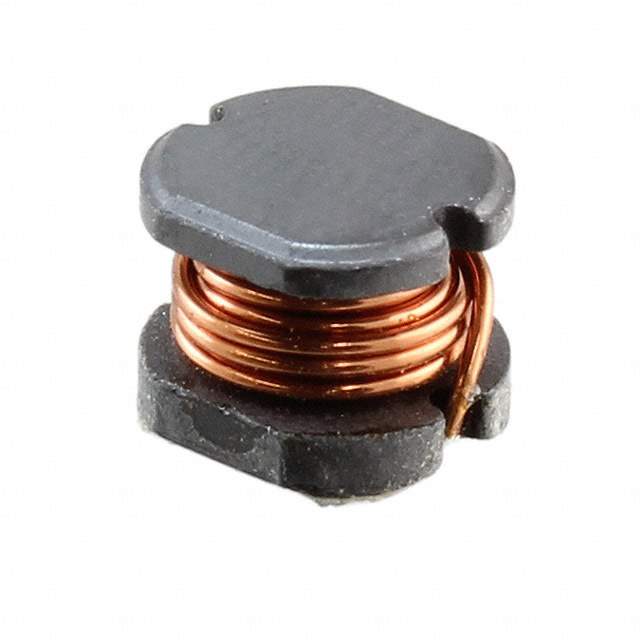

CD54NP-220MC Real Image
Same model may have multiple batches, images only for reference.

CD54NP-220MC

Part No CD54NP-220MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.11A 180 MOHM
Datasheet
CD54NP-220MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.11A
DC Resistance (DCR) 180 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.191" (4.85mm)
Win Source Part Number 050138-CD54NP-220MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD54NP-220MC CAD Model

Description

Description

The CD54NP-220MC is a versatile surface-mount power inductor with a 22uH inductance value. It features a ferromagnetic core that helps minimize core losses at high frequencies, making it suitable for compact, modern power circuits.

Features and Benefits

  • 22uH inductance
  • Surface-mount package
  • High saturation current
  • Low magnetic interference

Applications

  • Switching regulators
  • LED drivers
  • Voltage regulators
  • Filter circuits

Additional Details

The CD54NP-220MC offers a small footprint and is perfect for designs that require space conservation without sacrificing performance.
