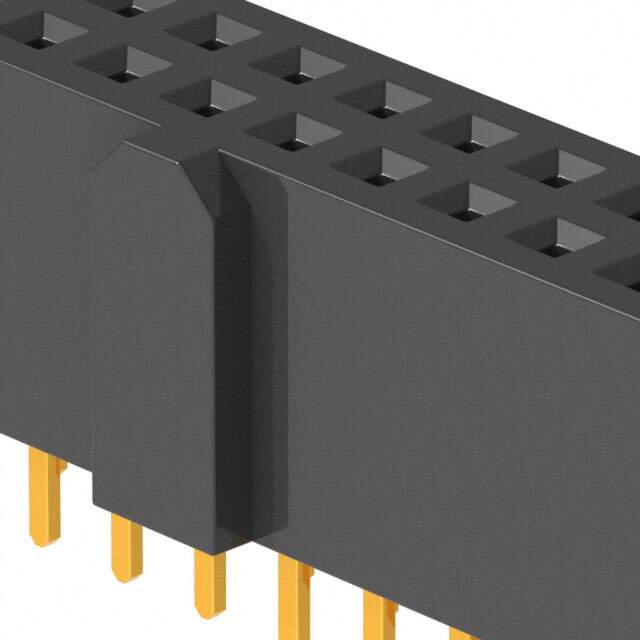

Same model may have multiple batches, images only for reference.

SFH11-PBPC-D20-ST-BK

Name: SFH11-PBPC-D20-ST-BK
Brand: Sullins Connector Solutions
SKU: 1003508
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFH11-PBPC-D20-ST-BK
Manufacturer	Sullins Connector Solutions
Catalog	Circular Connectors - Housings
Description	CONN HDR 40POS 0.1 GOLD PCB / 40 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	SFH11-PBPC-D20-ST-BK Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	SFH11
Package	Tray
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Polarizing Key
Current Rating (Amps)	3A
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	Flash
Base Product Number	SFH11
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	S9200,Q7125597,SFH11PBPCD20STBK
Standard Package	1
Win Source Part Number	1003508-SFH11-PBPC-D20-ST-BK
Ultra Librarian 3D Model	Ultra Librarian SFH11-PBPC-D20-ST-BK CAD Model

Alternative Products

Description

The Sullins Connector Solutions electronic component with the Win Source Part Number 1003508-SFH11-PBPC-D20-ST-BK is a rectangular connector that falls under the category of headers, receptacles, female sockets and manufactured by Sullins Connector Solutions.

Series: SFH11
Positions: 40
Polarizing Key: Yes
Connector Type: Header
Contact Type: Female Socket
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: Flash
Contact Finish-Post: Gold
Mounting: Through-Hole
Temperature Range: -40°C ~ 105°C
