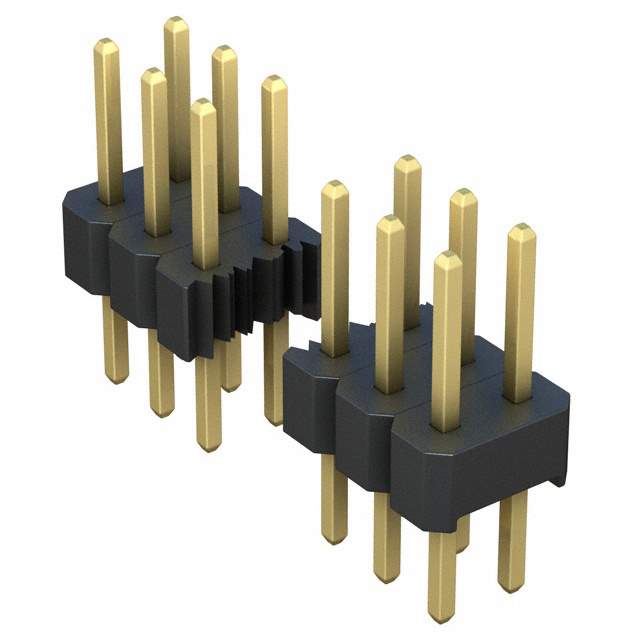

Same model may have multiple batches, images only for reference.

PRPN072PAEN

Name: PRPN072PAEN
Brand: Sullins Connector Solutions
SKU: 1352125
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PRPN072PAEN
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.346" (8.80mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyester
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Contact Finish Thickness - Post	Flash
Base Product Number	PRPN072
Standard Package	1
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352125-PRPN072PAEN
Ultra Librarian 3D Model	Ultra Librarian PRPN072PAEN CAD Model

Alternative Products

Description

The Sullins Connector Solutions PRPN072PAEN is a Header Male Pin designed for use in Connectors and Interconnects such as Rectangular Connectors.

Positions: 14
Mounting Type: Through-Hole
Contact Material: Brass
Contact Finish: Gold
Contact Finish Thickness: Flash (Mating and Post)
Current Rating: 1A
RoHS Status: Non-Compliant
Temperature Range: -40°C to 105°C
Status: Obsolete
