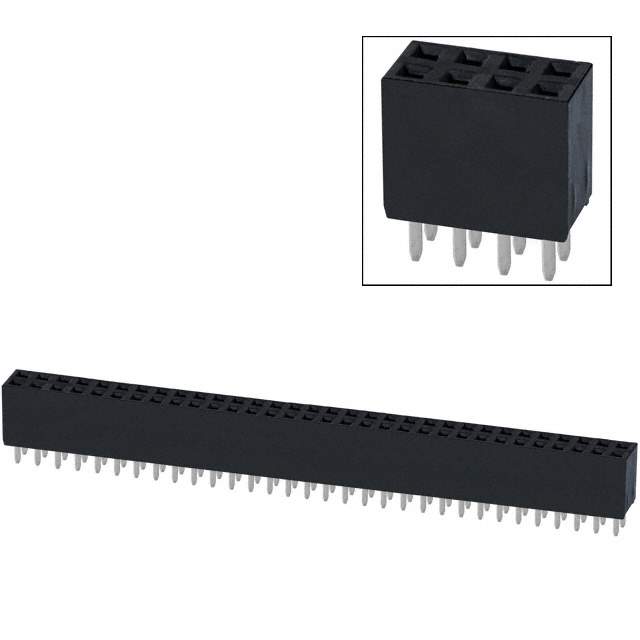

Same model may have multiple batches, images only for reference.

PPTC322LFBN-RC

Name: PPTC322LFBN-RC
Brand: Sullins Connector Solutions
SKU: 1349481
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PPTC322LFBN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 64POS 0.1 TIN PCB / 64 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Package	Tray
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	64
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	PPTC322
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349481-PPTC322LFBN-RC
Ultra Librarian 3D Model	Ultra Librarian PPTC322LFBN-RC CAD Model

Alternative Products

Description

The PPTC322LFBN-RC is a rectangular connector designed for headers, receptacles, and female sockets.

Product Name: PPTC322LFBN-RC
Connector Type: Header
Positions: 64
Contact Type: Female Socket
All Positions Loaded: Yes
Number of Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Package: Tray
Contact Material: Phosphor Bronze
Voltage Rating: 250V
Insulation Material: Polyester
Style: Board to Board
Pitch - Mating: 0.100"
Contact Finish - Mating and Post: Tin
Insulation Color: Black
Mounting Type: Through Hole
Row Spacing - Mating: 0.100"
Contact Length - Post: 0.126"
Insulation Height: 0.335"
Contact Shape: Square
Temperature Range: -40°C to 105°C
