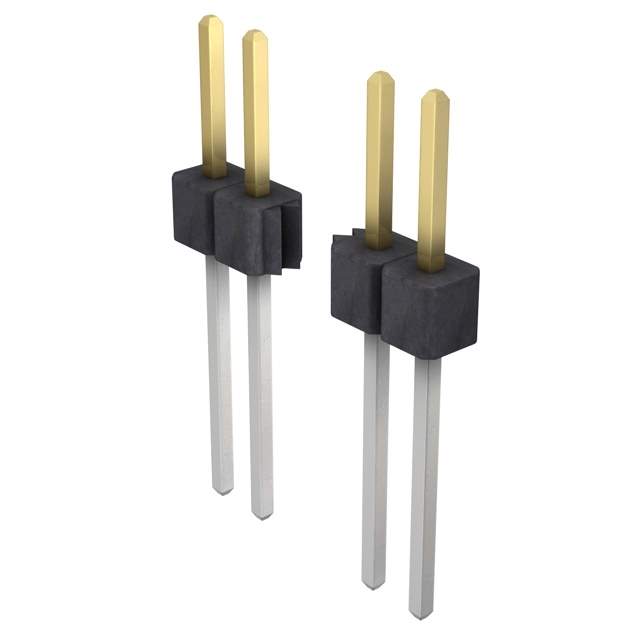

PBC10SACN

Name: PBC10SACN
Brand: Sullins Connector Solutions
SKU: 1229686
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PBC10SACN
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet	PBC10SACN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.320" (8.13mm)
Overall Contact Length	0.650" (16.51mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	PBC10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	S1031E-10
Standard Package	1
Win Source Part Number	1229686-PBC10SACN
Ultra Librarian 3D Model	Ultra Librarian PBC10SACN CAD Model

Description

The Sullins Connector Solutions PBC10SACN 1229686 is a rectangular connector that belongs to the Connectors, Interconnects category.

Positions: 10
Contact Type: Male Pin
Connector Type: Header, Breakaway
Positions Loaded: All
Rows: Single
Termination: Solder
Fastening Type: Push-Pull
Package: Bulk
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Mounting Type: Through-Hole
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0μin (0.25μm)
Contact Finish-Post: Tin
Contact Finish Thickness-Post: 100.0μin (2.54μm)
Current Rating: 3A
Temperature Range: -65 degrees Celsius to 125 degrees Celsius
