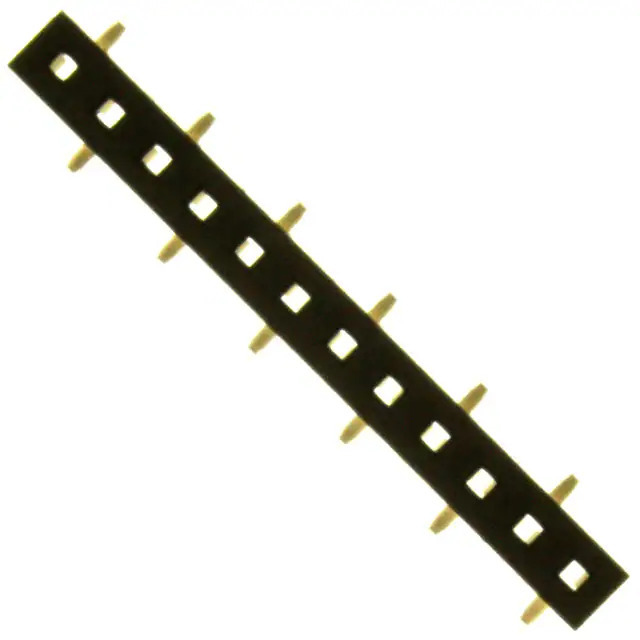

Same model may have multiple batches, images only for reference.

NPPN121BFLC-RC

Name: NPPN121BFLC-RC
Brand: Sullins Connector Solutions
SKU: 1379360
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NPPN121BFLC-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 12POS 0.079 GOLD SMD
Datasheet	NPPN121BFLC-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	-
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.181" (4.60mm)
Contact Length - Post	-
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	2A
Voltage Rating	150V
Applications	-
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	NPPN121
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1379360-NPPN121BFLC-RC
Ultra Librarian 3D Model	Ultra Librarian NPPN121BFLC-RC CAD Model

Alternative Products

Description

The NPPN121BFLC-RC is a surface mount rectangular connector header designed for board-to-board applications manufactured by Sullins Connector Solutions.

Operating Temperature: -40°C to 105°C
Current Rating: 2A
Pitch: 0.079" (2.00mm)
Positions: 12
Rows: 1
Mounting Type: Surface Mount
Fastening Type: Push-Pull
Insulation Height: 0.181" (4.60mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Polyamide (PA6T) and Nylon 6T
Voltage Rating: 150V
Flammability Rating: UL94 V-0
