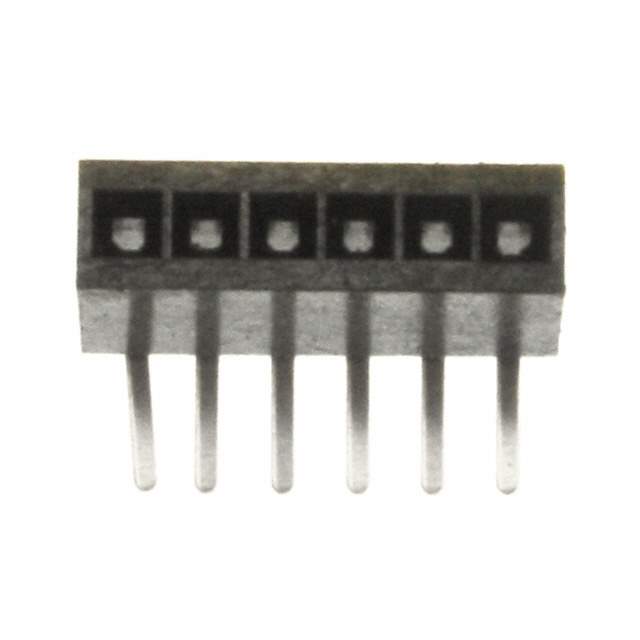

Same model may have multiple batches, images only for reference.

LPPB061NGCN-RC

Name: LPPB061NGCN-RC
Brand: Sullins Connector Solutions
SKU: 1350324
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LPPB061NGCN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 6POS 0.05 GOLD PCB R/A / 6 Position Header Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
Datasheet	LPPB061NGCN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Package	Tube
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Height	0.087" (2.20mm)
Contact Length - Post	0.091" (2.30mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	1A
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	LPPB061
Standard Package	76
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350324-LPPB061NGCN-RC
Ultra Librarian 3D Model	Ultra Librarian LPPB061NGCN-RC CAD Model

Alternative Products

Description

The LPPB061NGCN-RC is a rectangular connector from Sullins Connector Solutions.

Connector Type: Header
Gender: Female Sockets
Positions: 6
Pitch: 0.050 inches
Contact Material: Phosphor Bronze
Contact Finish: Gold
Packaging: Tube
Current Rating: 1A
Operating Temperature: -40°C to 105°C
Application: Board to Board
Mounting: Through Hole, Right Angle
