Same model may have multiple batches, images only for reference.

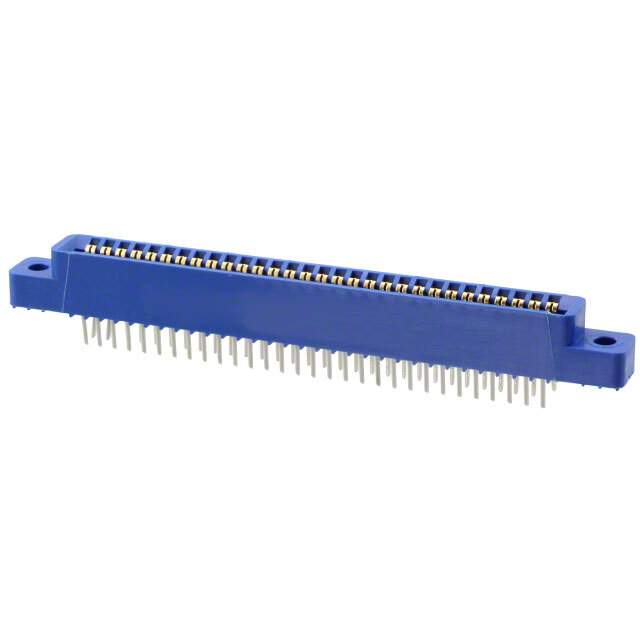

EBC30DRTH-S93 Real Image
Same model may have multiple batches, images only for reference.

EBC30DRTH-S93

Part No EBC30DRTH-S93
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS 0.100 / Conn Card Edge F 60 POS 2.54mm Solder ST Thru-Hole
Datasheet
EBC30DRTH-S93 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 30
Number of Positions 60
Card Thickness 0.093" (2.36mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Contact Type Full Bellows
Color Blue
Flange Feature Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature Range -65°C ~ 125°C
Material - Insulation Polybutylene Terephthalate (PBT)
Read Out Dual
Win Source Part Number 793772-EBC30DRTH-S93
Popularity Medium
Supply and Demand Status Balance
Family Name EBC
Introduction Date March 31, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EBC30DRTH-S93 CAD Model

Description

The Sullins Connector Solutions EBC30DRTH-S93 is a 60-position female connector with through-hole mounting style and dual edge readout.

  • Positions: 60
  • Mounting: Through-Hole
  • Readout: Dual Edge
  • Pitch: 0.100" (2.54mm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature Range: -65°C to 125°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 10μin (0.25μm)
  • Popularity: Medium
  • Supply and Demand Status: Balance
