The VN5E010AHTR-E from STMicroelectronics is a high-efficiency, automotive-grade Power MOSFET designed to handle high-current loads in a variety of automotive applications. This robust component is part of ST's VIPower M0-5 series, which is specifically engineered to offer outstanding performance in harsh automotive environments.

Key Features

• High Current Capability: With a continuous current rating of up to 25A, this Power MOSFET can drive substantial loads, making it suitable for automotive applications such as headlight control, fan control, and other high-current circuits.
• Low On-Resistance: The VN5E010AHTR-E boasts a very low on-resistance (Rds(on)) of just 12 mOhms at 25A, which contributes to its high efficiency and low heat generation during operation.
• Thermal Shutdown Protection: To ensure reliability and longevity, the device includes an integrated thermal shutdown feature that protects it from overheating.
• Overvoltage Clamp: An integrated clamp protects the device and the load from being damaged by overvoltage transients, which are common in automotive power systems.
• Single Channel: This component controls one power channel, offering simplicity and precision in applications that require individual control over each load.

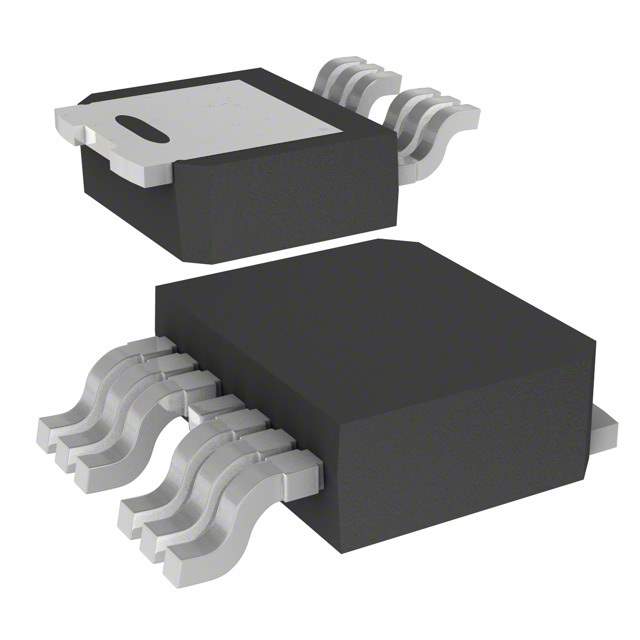

• Surface-Mount Package: The VN5E010AHTR-E comes in a compact, surface-mount package (HSSOP10), which is ideal for modern, space-constrained automotive electronic assemblies.

Applications

The VN5E010AHTR-E is designed for a wide range of applications within the automotive sector, including but not limited to:

• Lamp control (headlights, fog lights, brake lights)
• Motor control (window lifters, windshield wipers, fans, pumps)
• General-purpose high-current switching

Quality and Reliability

As an automotive-grade product, the VN5E010AHTR-E meets stringent quality standards, including AEC-Q100 qualification. It is manufactured by STMicroelectronics, a leader in the semiconductor industry, ensuring high reliability and performance for critical automotive systems.
