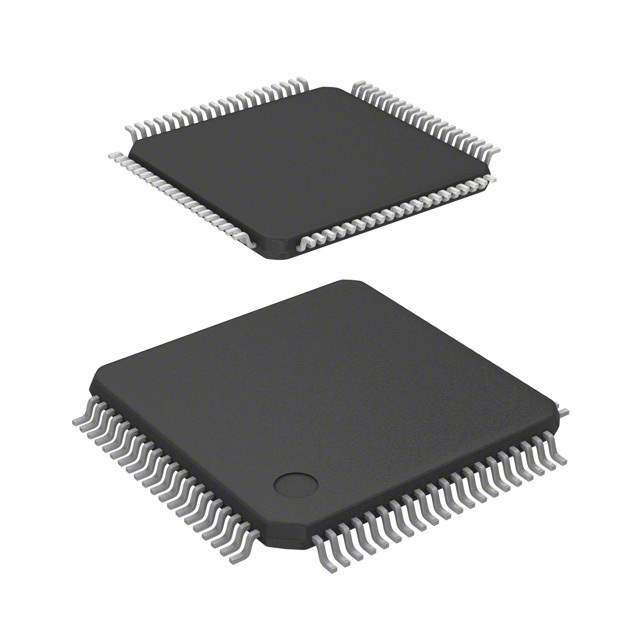

STMicroelectronics UPSD3422E-40U6 Microcontroller

The UPSD3422E-40U6 is a highly-integrated and feature-rich microcontroller from STMicroelectronics, designed to meet the rigorous demands of sophisticated embedded systems. This microcontroller is part of the uPSD3400 Turbo Plus series which is known for its high performance and flexibility, making it an ideal choice for a wide range of applications including industrial control, automotive systems, and consumer electronics.

Key Features

• High Performance: With a 40 MHz 8032 microcontroller core, the UPSD3422E-40U6 provides robust processing capabilities, ensuring efficient handling of complex tasks.
• Dual Bank Flash Memory: Equipped with 288 KB of flash memory, it supports in-application programming and a true EEPROM emulation, which enhances the reliability and flexibility of firmware updates.
• SRAM: The device includes 16 KB of SRAM, providing ample space for temporary data storage during operation.
• Flexible I/O: Numerous programmable I/O ports are available, allowing for versatile connectivity and control options within embedded systems.
• Advanced Peripherals: It features integrated peripherals including a JTAG interface for debugging, a PWM unit for motor control, and multiple serial interfaces (UART, SPI, I²C) for communication with other components.
• PLD: The on-chip programmable logic device (PLD) enables customization of logic functions, which can help optimize board space and reduce system cost.

Applications

The UPSD3422E-40U6's versatile feature set makes it suitable for a plethora of applications, such as:

• Home automation systems
• Security and alarm systems
• Industrial control systems
• Automotive electronics
• Office automation equipment

Conclusion

In summary, the STMicroelectronics UPSD3422E-40U6 microcontroller offers a powerful combination of processing power, memory capabilities, and integrated peripherals. Its adaptability and comprehensive feature set make it an exceptional choice for designers looking to develop advanced and reliable embedded systems.
