The TCPP02-M18 from STMicroelectronics is a comprehensive USB Type-C port protection solution designed to safeguard the data lines and power delivery (PD) communication in consumer electronics. This advanced device is optimized for systems that require efficient and reliable protection mechanisms against electrostatic discharge (ESD), overvoltage, and overcurrent conditions that are common in everyday usage scenarios.

Key Features

• ESD Protection: The TCPP02-M18 is equipped with robust ESD protection that exceeds IEC 61000-4-2 level 4 standards, ensuring that the USB Type-C interface remains safe from electrostatic discharges.
• Overvoltage Protection: With an integrated overvoltage protection (OVP) circuit, the device shields the system from voltage surges, thereby preventing damage to the connected electronics.
• Overcurrent Protection: The TCPP02-M18 includes overcurrent protection (OCP) to safeguard the USB power lines from excessive current that could lead to overheating and potential failure.
• Short-to-VBUS Protections: It features short-to-VBUS protections on CC1, CC2, and SBU lines, further enhancing the safety of the device against accidental power line shorts.
• Thermal Shutdown: An integrated thermal shutdown feature ensures the device operates within safe temperature ranges, protecting against thermal runaway conditions.
• Dead Battery Mode: The device supports dead battery mode operation, allowing for a minimal configuration to be powered from the USB Type-C port even when the system battery is fully discharged.

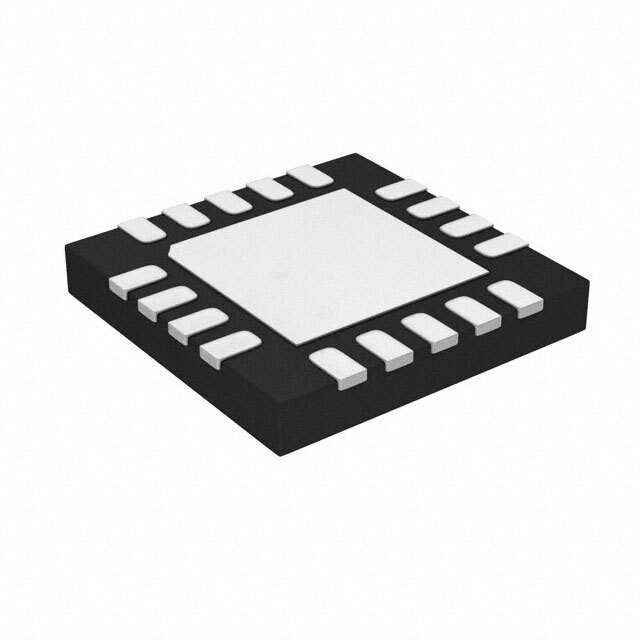

• Small Footprint: The TCPP02-M18 comes in a small QFN-18 package, making it suitable for compact designs without compromising on protection capabilities.

Applications

The TCPP02-M18 is ideal for a wide range of applications where USB Type-C connectivity is used, including smartphones, tablets, laptops, docking stations, and other portable devices that require reliable protection for their USB Type-C interfaces.

Conclusion

STMicroelectronics' TCPP02-M18 provides a robust protection solution for USB Type-C ports, ensuring device integrity and user safety. Its comprehensive protection features and small package size make it a prime choice for designers looking to incorporate USB Type-C interfaces in their next-generation electronic devices.
