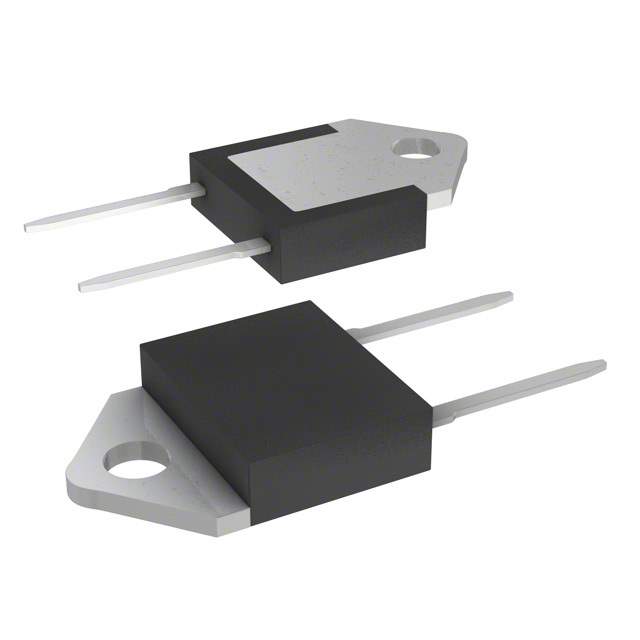

The STTH3006PI, from the renowned semiconductor manufacturer STMicroelectronics, is a cutting-edge ultrafast diode designed for high-efficiency power conversion applications. This high-performance component is specifically engineered to meet the stringent requirements of modern power supplies, enabling devices to operate with enhanced power efficiency and reliability.
Key Features
- High Reverse Voltage: With a reverse voltage of 600V, the STTH3006PI is suitable for high-voltage applications, ensuring that the diode can handle significant potential differences without performance degradation.
- Ultrafast Switching: The diode's ultrafast switching capability, with a recovery time as low as 35ns, makes it ideal for high-frequency operations, reducing switching losses and improving overall efficiency.
- High Surge Current Capability: It is capable of withstanding high surge currents, which is crucial for protecting circuits during transient conditions such as power surges or load changes.
- Low Forward Voltage Drop: The low forward voltage drop minimizes conduction losses, contributing to the energy efficiency of the entire circuit.
- Robust Design: The package is designed to offer high mechanical and thermal resistance, ensuring reliability and a long operational lifespan even under stressful conditions.
Applications
The STTH3006PI is versatile and can be used in a wide range of applications, including:
- Switch-mode power supplies (SMPS)
- Freewheeling diodes in converters and motor control circuits
- Power factor correction circuits (PFC)
- Snubber diodes
- Rectification in high-frequency power supplies
Product Specifications
Parameter
Value
Package
TO-3P
Reverse Voltage (V<sub>R)
600V
Average Forward Current (I<sub>F(AV))
30A
Non-repetitive Peak Surge Current (I<sub>FSM)
300A
Recovery Time (t<sub>rr)
35ns
Overall, the STTH3006PI is a robust and efficient solution for advanced power conversion, offering designers a reliable component that enhances the performance of electronic systems.
