STTH2R06 - Ultrafast Recovery Diode from STMicroelectronics

The STTH2R06 is a high-performance ultrafast recovery diode designed by STMicroelectronics, tailored for applications requiring efficient and reliable power conversion. This diode is part of the Turbo 2 ultrafast high voltage series, which is renowned for its low conduction and switching losses, making it an ideal choice for high-frequency operations.

With a repetitive peak reverse voltage (VRRM) of 600V and an average forward current (IF(AV)) of 2A, the STTH2R06 is capable of handling moderate power levels while providing the efficiency required for smooth power regulation in various electronic circuits. The device's ultrafast recovery time, typically less than 35ns, ensures minimal energy loss during the transition from conducting to non-conducting states, which is critical for high-efficiency power supplies, lighting technology, and other power conversion systems.

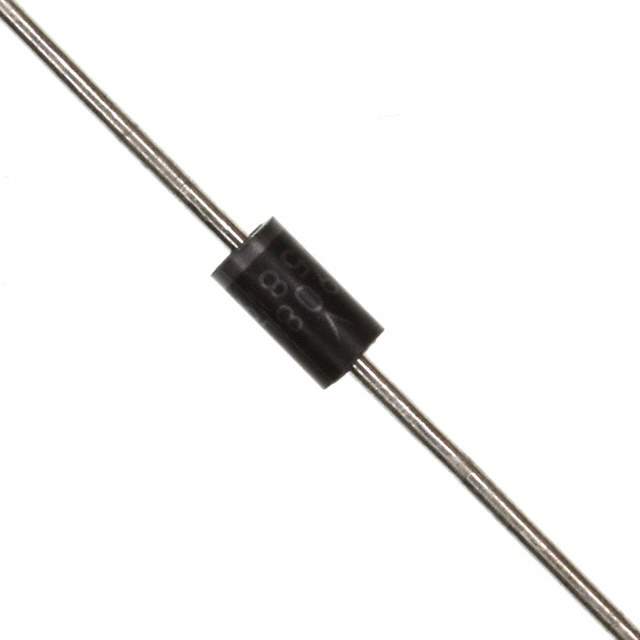

The STTH2R06 comes in a variety of packages, including the surface-mount SMB (DO-214AA) and the through-hole axial DO-15, providing flexibility for different PCB layouts and assembly processes. This versatility allows designers to incorporate the diode into a wide range of electronic products, from compact surface-mounted devices to more traditional through-hole applications.

One of the key features of the STTH2R06 is its low forward voltage drop (VF), which reduces power dissipation and improves overall system efficiency. This characteristic is particularly beneficial in applications where power conservation is paramount, such as in portable devices and renewable energy systems. Additionally, the diode's high junction temperature capability extends the range of operating conditions, ensuring reliability even under stressful thermal environments.

STMicroelectronics has also designed the STTH2R06 with robustness in mind. The diode is capable of withstanding high surge currents, which is essential for protecting circuits against unexpected voltage spikes and enhancing the longevity of the end product.

In summary, the STTH2R06 ultrafast recovery diode is a high-quality component that combines speed, efficiency, and reliability, making it an excellent choice for designers looking to optimize their power conversion applications across various industries.
