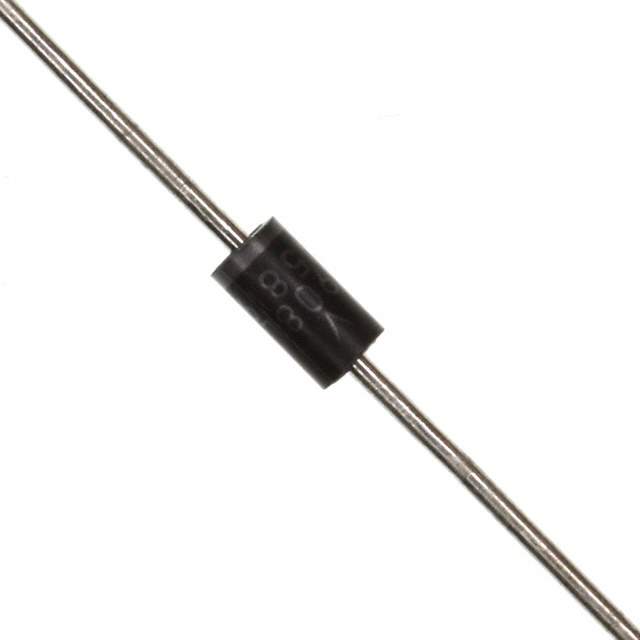

The STTH2L06RL is a high-efficiency ultrafast recovery diode designed and manufactured by STMicroelectronics. This diode is part of their Turbo 2 ultrafast high voltage series, which is renowned for its exceptional performance in switching applications. The STTH2L06RL is specifically crafted to cater to the demanding requirements of modern electronic circuits, offering a robust and reliable solution for converters and power supplies.

Key Features

• Low Forward Voltage Drop: The diode features a very low forward voltage drop, which reduces power loss and improves efficiency during operation.
• Ultrafast Reverse Recovery Time: With an extremely fast reverse recovery time, the STTH2L06RL minimizes switching losses and is ideal for high-frequency operations.
• High Surge Current Capability: It is designed to withstand high surge currents, ensuring reliability and robustness in applications subject to surge conditions.
• High Voltage Rating: The device can handle high voltages, making it suitable for a wide range of applications, including those with high working voltage requirements.

Applications

The STTH2L06RL is versatile and can be utilized in various applications such as:

• Switching power supplies
• Power factor correction circuits
• Snubber circuits
• Freewheeling diodes in converter circuits
• High-frequency inverters

Package and Availability

The STTH2L06RL comes in a convenient surface-mount package, which is suitable for automated assembly lines and helps in reducing the overall size of the circuit. It is widely available through STMicroelectronics' distribution channels, ensuring that designers and manufacturers can easily integrate it into their products.

Quality and Reliability

STMicroelectronics is committed to providing high-quality products. The STTH2L06RL diode is no exception, and it is manufactured to meet the highest industry standards for performance and reliability. Customers can trust in the consistent quality and dependability of this component for their critical circuit designs.
