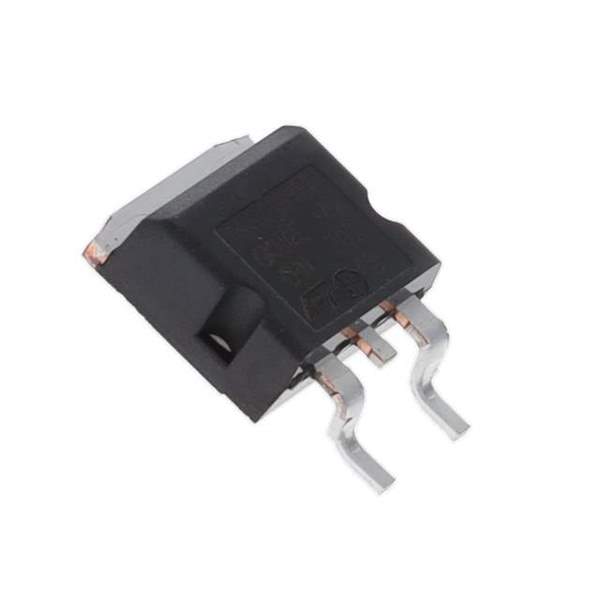

STTH15L06G-TR - Ultrafast High Voltage Diode

The STTH15L06G-TR, manufactured by STMicroelectronics, is an ultrafast high voltage diode, engineered to enhance the efficiency of switching circuits while providing robust performance. With its exceptional switching speeds and high voltage capabilities, this component is ideally suited for applications requiring fast and efficient rectification.

Key Features

• Voltage Rating: The diode features a repetitive peak reverse voltage (V<sub>RRM) of 600V, making it well-suited for high voltage applications.
• Current Handling: It can handle an average forward current (I<sub>F(AV)) of up to 15A, ensuring reliable performance in demanding conditions.
• Ultrafast Recovery Time: The STTH15L06G-TR boasts an ultrafast recovery time, reducing switching losses and improving the efficiency of power conversion circuits.
• Low Forward Voltage Drop: A low forward voltage drop (V<sub>F) minimizes power dissipation and enhances thermal efficiency, which is crucial for maintaining the integrity of electronic systems.
• Soft Recovery Characteristics: The soft recovery feature of the diode reduces electromagnetic interference (EMI), which is particularly beneficial in noise-sensitive applications.
• Robust Design: Its robust design ensures reliability and longevity, even under harsh operating conditions.

Applications

The STTH15L06G-TR is an excellent choice for a wide range of applications, including:

• Switch-mode power supplies (SMPS)
• Free-wheeling diodes for motor control circuits
• Snubber diodes
• Power factor correction (PFC) circuits
• Adapters and on-board DC/DC converters

Package and Quality

The device is packaged in a D2PAK (TO-263), which is known for its compact footprint and excellent power handling capabilities. The "TR" suffix indicates tape and reel packaging, which is suitable for automated assembly processes. STMicroelectronics' commitment to quality ensures that the STTH15L06G-TR meets the highest standards of performance and reliability.
