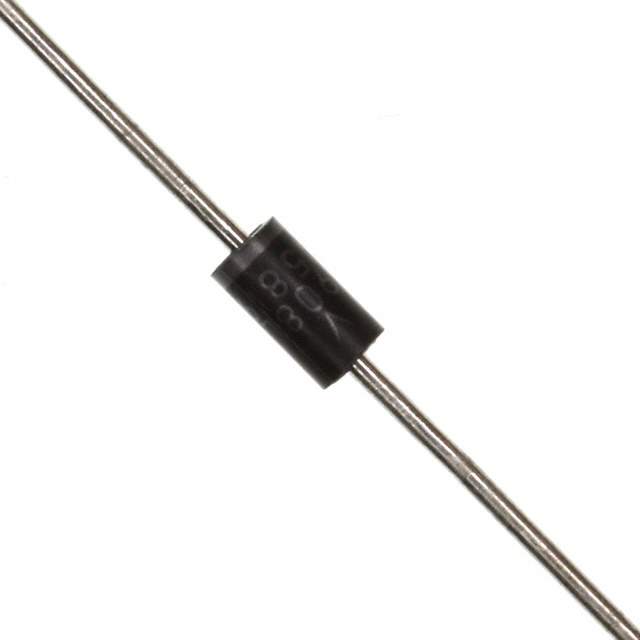

The STTH110, manufactured by STMicroelectronics, is a state-of-the-art ultrafast high voltage rectifier designed to meet the stringent requirements of modern electronic applications. This component is particularly suitable for use in switch-mode power supplies, high-frequency converters, and freewheeling diodes in a variety of power switching applications.
Key Features
- Voltage Ratings: The STTH110 is capable of withstanding reverse voltages of up to 1000 V, making it ideal for high voltage applications.
- Ultrafast Recovery Time: With an exceptionally fast recovery time, this rectifier minimizes power losses and improves efficiency, which is crucial for high-speed operation.
- Low Forward Voltage Drop: The low forward voltage drop feature ensures reduced thermal resistance and enhances power handling capability.
- Robust Design: The device is designed to be robust against thermal and electrical stresses, ensuring reliability and a long operational life.
Applications
The versatility of the STTH110 allows it to be used in a wide range of applications, including:
- Power Management Systems
- Switching Power Supplies
- Power Converters
- Motor Drives
- Snubber Circuits
- Lighting Circuits
Technical Specifications
Parameter
Value
Repetitive Peak Reverse Voltage (V<sub>RRM)
1000 V
Average Forward Current (I<sub>F(AV))
1 A
Non-Repetitive Peak Forward Surge Current (I<sub>FSM)
30 A
Operating Junction Temperature (T<sub>j)
-40 to +150 °C
Package
DO-41
With its combination of high performance, reliability, and efficiency, the STTH110 from STMicroelectronics is an excellent choice for designers looking to improve their power conversion systems.
