STPS6045CP - Power Schottky Rectifier by STMicroelectronics

The STPS6045CP is a robust and highly efficient power Schottky rectifier designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology and innovation. This rectifier is specifically engineered to cater to high-performance applications requiring low voltage drop and high surge current capability.

Key Features

• High Junction Temperature: With an operating junction temperature range of -40°C to 150°C, the STPS6045CP is designed to withstand extreme thermal conditions, ensuring reliability in a wide range of applications.
• Low Forward Voltage Drop: This rectifier offers a low forward voltage drop, which enhances the overall efficiency of the system by reducing power losses during operation.
• High Surge Current Capability: It is capable of handling high surge currents, making it an ideal choice for applications that may experience unexpected overcurrent conditions.
• Avalanche Rated: The device is also avalanche rated, providing additional protection against sudden voltage spikes that could potentially damage the circuit.

Applications

The STPS6045CP is suited for a variety of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC/DC converters
• Automotive applications

Package and Ratings

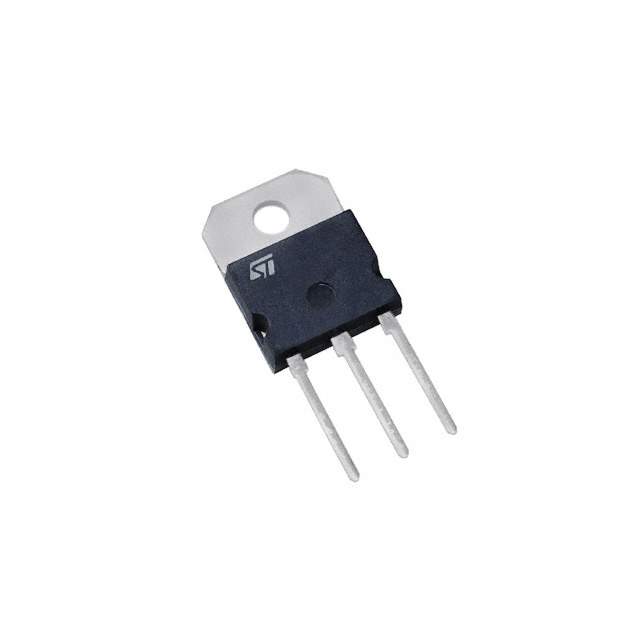

The STPS6045CP comes in a TO-247 package, which is known for its high power dissipation capability. It has a repetitive peak reverse voltage (V<sub>RRM) of 45V and an average forward current (I<sub>F(AV)) of 60A, making it suitable for high current applications.

Quality and Reliability

STMicroelectronics ensures that the STPS6045CP meets the highest quality and reliability standards. The device has been subjected to rigorous testing and is compliant with industry-standard certifications. This guarantees performance and longevity in the field, providing engineers with a dependable component for their power management solutions.
