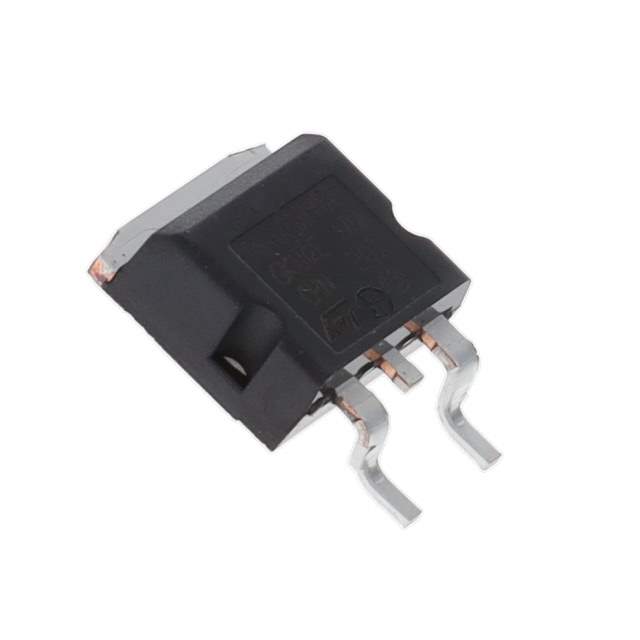

STPS40150CGY-TR Power Schottky Rectifier

The STPS40150CGY-TR is a robust and high-performance Power Schottky Rectifier designed and manufactured by STMicroelectronics. This rectifier is tailored for applications requiring efficient and reliable power management, making it an ideal choice for a wide range of electronic devices. The STPS40150CGY-TR is distinguished by its low forward voltage drop and high surge current capability, which are critical for enhancing the overall efficiency and longevity of power supplies.

Key Features

• High Junction Temperature: With a maximum operating junction temperature of 175°C, the STPS40150CGY-TR ensures reliable performance even under high thermal stress conditions.
• Low Forward Voltage Drop (VF): The device's low VF minimizes conduction losses, thereby improving the efficiency of the application in which it is used.
• High Surge Capability: Its ability to handle high surge currents makes it suitable for applications that may experience short bursts of high current, providing robust protection against such events.
• Dual Center Tap Configuration: The rectifier is designed in a dual center tap configuration, packaged in a TO-247 package, which is beneficial for heat dissipation and space-saving in circuit design.

Applications

• Switch Mode Power Supplies (SMPS)
• High-frequency DC/DC converters
• Free-Wheeling diodes
• Reverse battery protection
• Automotive applications

Product Specifications

The STPS40150CGY-TR has a repetitive peak reverse voltage (VRRM) of 150V and an average forward current (IF(AV)) of 40A. Its non-repetitive forward surge current (IFSM) is 400A, highlighting its capability to handle high current peaks. The device also features a low forward voltage drop, typically 0.72V at 20A, which contributes to its high efficiency.

With its robust design and advanced semiconductor technology, the STPS40150CGY-TR from STMicroelectronics is a reliable and efficient solution for power rectification needs in a variety of high-performance applications. Its combination of high thermal resistance, low conduction losses, and surge current capability makes it an essential component for designers looking to enhance the reliability and efficiency of their power management systems.
