The STPS3L45AF from STMicroelectronics is a robust and high-performance Schottky rectifier designed for a variety of applications that demand high efficiency and reliability. This device is particularly well-suited for switch-mode power supplies, high-frequency DC/DC converters, freewheeling diodes, reverse battery protection, and polarity protection applications.

Key Features

• Low Forward Voltage Drop: The STPS3L45AF boasts a low forward voltage drop, which minimizes power loss and improves efficiency, making it ideal for energy-sensitive circuits.
• High Junction Temperature: With a maximum operating junction temperature of 150°C, this Schottky rectifier can handle high thermal environments and offers greater design flexibility.
• Avalanche Capability: It has the capability to withstand high-energy events, providing robust performance and reliability in harsh conditions.

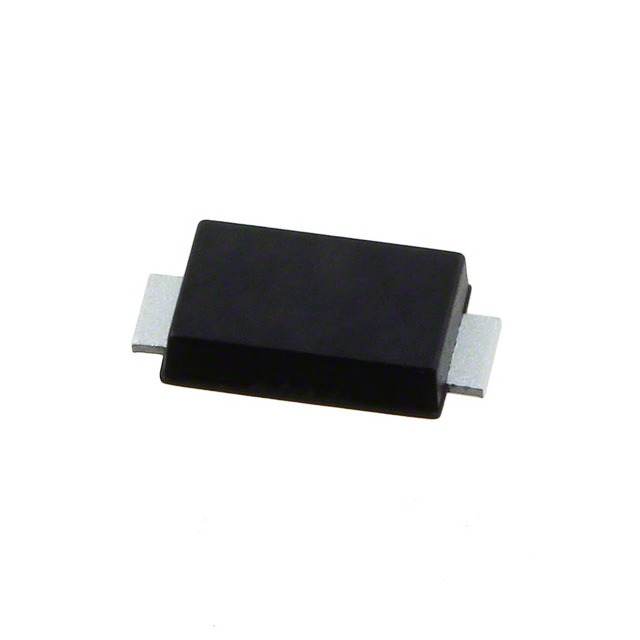

• Surface-Mount Package: The device is available in a surface-mount package, which allows for compact PCB design and is suitable for automated assembly processes.

Electrical Characteristics

The STPS3L45AF features a repetitive peak reverse voltage of 45 V and an average forward current of 3 A, making it capable of handling moderate power levels. Its fast switching capability ensures that the rectifier can switch on and off efficiently, which is critical in high-frequency applications.

Applications

Due to its high efficiency and reliability, the STPS3L45AF is widely used in:

• Power Management Solutions
• Automotive Applications
• Industrial Power Supplies
• Consumer Electronics

Quality and Environmental Compliance

STMicroelectronics is committed to delivering high-quality products that meet international standards. The STPS3L45AF complies with RoHS and is manufactured with the environment in mind, ensuring that it meets current and future regulations for hazardous substances.
