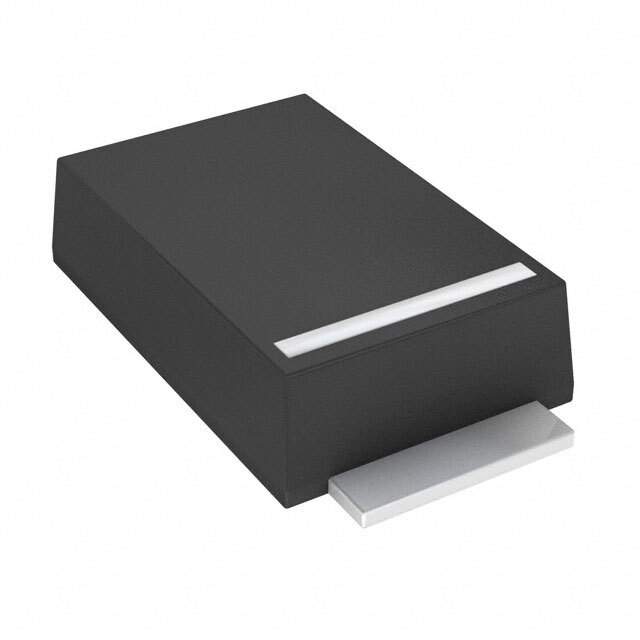

STPS3H100AF - High Voltage Power Schottky Rectifier from STMicroelectronics

The STPS3H100AF is a robust and high-performing Schottky Rectifier designed by STMicroelectronics, tailored for applications requiring efficient power management and high reliability. This device is particularly suitable for switch-mode power supplies, high-frequency converters, and freewheeling diodes in various electronic systems.

Key Features

• Average Forward Current: The STPS3H100AF can handle an average forward current of up to 3 A, making it suitable for medium-power applications.
• Repetitive Peak Reverse Voltage: With a repetitive peak reverse voltage of 100 V, this rectifier can withstand high voltage environments, ensuring stable performance.
• Low Forward Voltage Drop: The low forward voltage drop reduces power loss and improves efficiency, which is crucial for energy-sensitive designs.
• High Junction Temperature: The device operates at a high junction temperature of up to 175°C, providing reliability in high-temperature conditions.
• Package: It comes in a TO-220FP package, known for its thermal performance and mechanical robustness.

Applications

The STPS3H100AF is versatile and can be used in a wide range of applications, including:

• Power Supply Units (PSUs)
• DC-DC Converters
• Adapters and Battery Chargers
• Lighting Systems
• Automotive Applications

Advantages

The STPS3H100AF stands out for its high efficiency and reliability. Its low forward voltage drop ensures minimal energy loss during conduction, while the high junction temperature range allows for operation in extreme conditions without compromising performance. The TO-220FP package enhances its thermal dissipation capabilities, making it an excellent choice for designs where space and cooling are constrained.

STMicroelectronics' commitment to quality is reflected in the STPS3H100AF, providing designers with a dependable component for their high-voltage power conversion needs.
