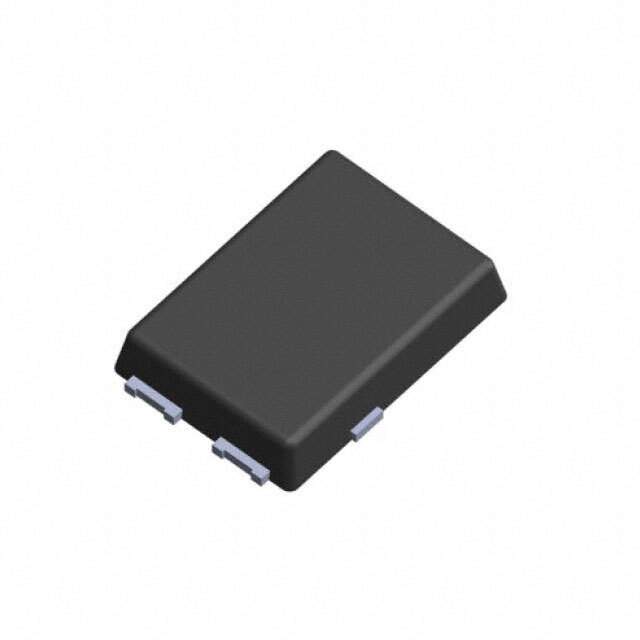

The STPS1045SFY is a robust and high-performance power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to meet the stringent requirements of high efficiency and reliability for power supply applications. It is especially suitable for switch-mode power supplies and high-frequency DC to DC converters.
Key Features
- Voltage Rating: The STPS1045SFY has a repetitive peak reverse voltage (V<sub>RRM) of 45V, making it suitable for a wide range of applications.
- Forward Current: It can handle an average forward current (I<sub>F(AV)) of up to 10A, providing a reliable solution for high current demands.
- Low Forward Voltage Drop: The device exhibits a low forward voltage drop (V<sub>F), which enhances the overall efficiency of the system by reducing power losses during conduction.
- High Junction Temperature: With an operating junction temperature range (T<sub>j) from -40°C to 150°C, the STPS1045SFY is capable of withstanding extreme thermal environments.
- Packaging: This rectifier comes in a fully insulated ISOWATT220AB package, ensuring electrical insulation and improved thermal resistance.
Applications
The STPS1045SFY is ideal for a variety of applications where efficiency and thermal performance are critical. It is commonly used in:
- Switch-mode power supplies (SMPS)
- High-frequency DC/DC converters
- Free-wheeling diodes
- Reverse battery protection
- Power management devices
Quality and Reliability
STMicroelectronics is committed to the highest standards of quality and reliability, and the STPS1045SFY is no exception. It is manufactured to meet rigorous industry standards, ensuring a dependable performance for critical power supply operations. With its superior efficiency and thermal characteristics, the STPS1045SFY is an excellent choice for designers seeking to optimize their power electronic systems.
