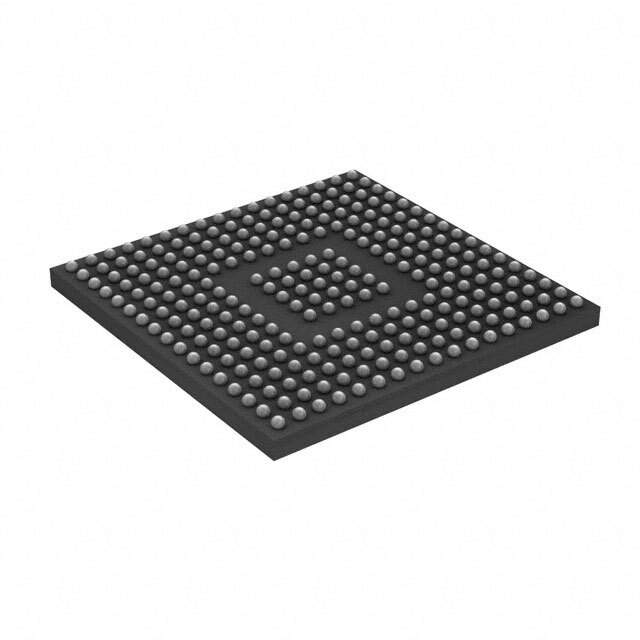

STM32H745XIH6 Microcontroller Overview

The STM32H745XIH6 is a state-of-the-art microcontroller product from STMicroelectronics, designed to offer a perfect blend of performance, power efficiency, and advanced features for sophisticated applications. This dual-core microcontroller is part of the STM32H7 series, which is renowned for its high-performance ARM Cortex cores.

Key Features:

• Dual-Core Configuration: It incorporates a Cortex-M7 core running at up to 480 MHz and a Cortex-M4 core at up to 240 MHz, allowing for flexible task allocation and real-time application management.
• Advanced Memory Architecture: The device features a Flash memory of 2 Mbytes and a RAM of 1 Mbyte, which includes 192 Kbytes of TCM RAM for critical real-time data and 864 Kbytes of user RAM for general application use.
• Rich Connectivity: A broad set of peripherals for connectivity includes USB OTG, Ethernet, CAN, UART, SPI, I2C, and more, facilitating versatile communication options for various application requirements.
• Graphics Support: With a Chrom-ART Accelerator™ for enhanced graphic performance, the STM32H745XIH6 is suitable for applications with a graphical user interface.
• Power Efficiency: The microcontroller is designed with energy efficiency in mind, featuring multiple power modes to minimize power consumption during idle or low-performance states.

Applications:

The STM32H745XIH6 is ideal for a wide range of applications, including but not limited to:

• Industrial control systems
• Home automation
• Medical and wearable devices
• Audio and video applications
• Internet of Things (IoT) devices

Development Support:

STMicroelectronics provides extensive support for product development, including comprehensive software HAL libraries, development boards, and real-time debugging tools. The STM32H745XIH6 is also supported by major Integrated Development Environments (IDEs) and software toolchains, making it an accessible choice for both professional developers and hobbyists.
