The STM32F103T8U6TR is a high-performance, ARM Cortex-M3 based microcontroller from STMicroelectronics, designed to offer an ideal balance between performance, power consumption, and cost. This versatile microcontroller is suitable for a wide range of applications, from industrial control systems to medical devices, and is especially popular in embedded system designs due to its rich set of features and peripherals.

Key Features

• Core: ARM Cortex-M3 processor, running at a frequency of up to 72 MHz, provides the backbone for the microcontroller, delivering efficient performance and supporting deterministic system behavior.
• Memory: Comes equipped with 64 KB of Flash memory and 20 KB of SRAM, providing ample space for application code and data storage.
• I/O Pins: Features 37 I/O ports, which are all 5V-tolerant, ensuring compatibility with a wide range of sensors and actuators.
• Communication Interfaces: A comprehensive set of communication interfaces, including I2C, SPI, UART/USART, and CAN, allows for versatile connectivity options with other components and systems.
• ADC: An integrated 12-bit analog-to-digital converter with up to 16 channels allows for precise measurement of analog signals, making it ideal for sensor interfacing.
• Timers: Multiple timers, including general-purpose and advanced-control timers, provide the necessary tools for tasks such as PWM generation and time-based control.
• Debugging: The device supports in-circuit debugging and programming via JTAG/SWD interfaces, facilitating easier development and troubleshooting.

Energy Efficiency

The STM32F103T8U6TR is designed with energy efficiency in mind, featuring several power-saving modes, including Sleep, Stop, and Standby. These modes help to minimize power consumption in idle or low-activity states, extending the battery life of portable devices.

Package and Quality

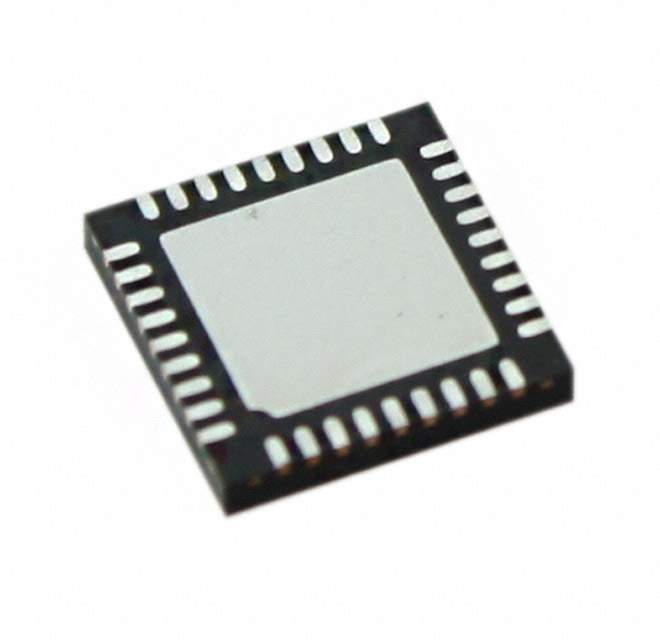

The microcontroller comes in a compact LQFP-36 package, making it suitable for space-constrained applications. It is also characterized by a -40°C to 85°C operating temperature range, ensuring reliable operation under varying environmental conditions. The STM32F103T8U6TR is part of STMicroelectronics' commitment to quality and reliability, meeting stringent industry standards for performance and durability.
