The STM32F101ZGT6 is a high-performance ARM Cortex-M3 based microcontroller designed by STMicroelectronics. This microcontroller is part of the STM32F1 series, which is renowned for its balance of performance, power consumption, and feature integration. The STM32F101ZGT6 is specifically tailored for cost-sensitive applications that require a high level of integration and processing power.
Key Features
- CPU: ARM 32-bit Cortex-M3 CPU, running at a frequency of up to 36 MHz, delivering 1.25 DMIPS/MHz (Dhrystone 2.1) performance.
- Memory: Equipped with 1 Mbyte of Flash memory and 96 Kbytes of SRAM, which provides ample space for complex applications and storage.
- I/O Ports: A rich set of I/Os and peripherals are accessible through up to 80 fast I/O ports, with various levels of protection.
- Analog: Features include 2x 12-bit analog-to-digital converters, providing up to 16 channels, and 2x DAC channels, enhancing its capabilities in control systems and sensor interfacing.
- Timers: Comes with multiple timers, including 3x 16-bit timers and 1x PWM timer for accurate timing operations and event management.
- Communication Interfaces: Comprehensive communication interfaces such as USARTs, SPIs, I2Cs, and CAN, allowing for versatile connectivity options.
- Debugging: Integrated with a Serial Wire Debug (SWD) and JTAG interfaces for full access to the CPU without a need for additional debug hardware.
- Operating Voltage: The device operates in the range of 2.0 to 3.6 volts, accommodating various power supply configurations.

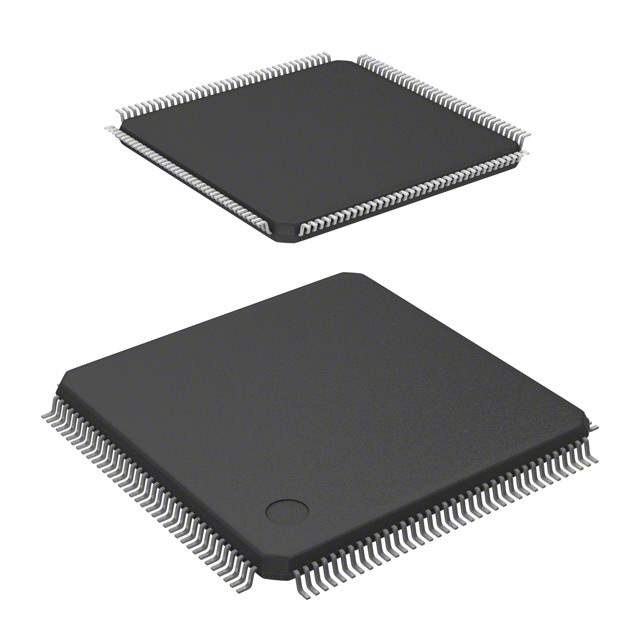

- Package: Available in a 144-pin LQFP (Low-profile Quad Flat Package) that is suitable for space-constrained applications.
Applications
The STM32F101ZGT6 is designed for a wide range of applications, including industrial control, motor drives, medical equipment, and consumer electronics. Its robust architecture and rich peripheral set make it an ideal choice for applications that require high levels of processing and real-time performance in a cost-effective package.
Conclusion
Overall, the STM32F101ZGT6 from STMicroelectronics stands out as a microcontroller that offers a perfect blend of performance, power efficiency, and features. Its flexibility and powerful core make it a go-to choice for designers looking to build sophisticated and reliable systems without inflating the project's budget.
