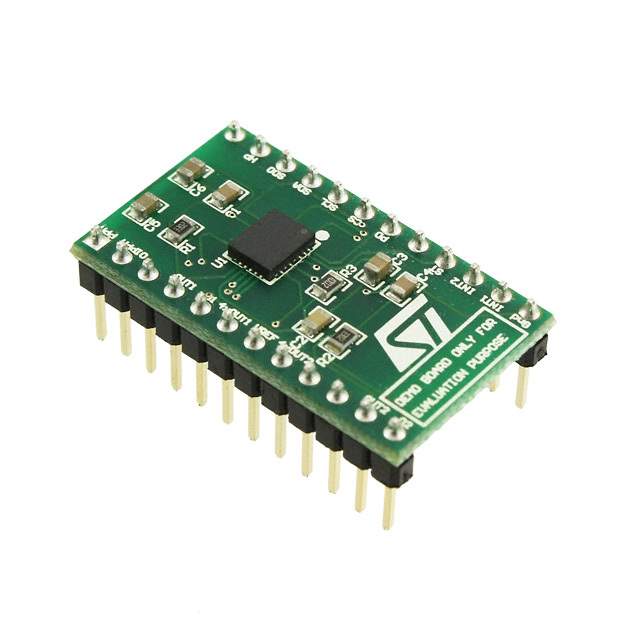

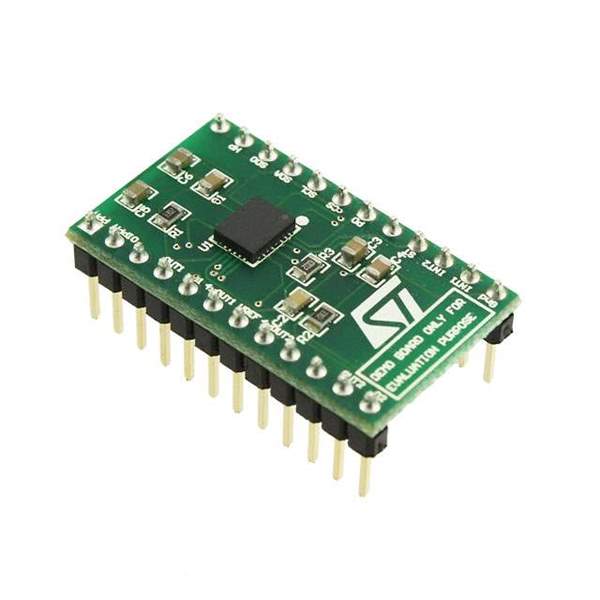

The STEVAL-MKI096V1 from STMicroelectronics is a comprehensive evaluation platform designed for motion MEMS (Micro-Electro-Mechanical Systems) and environmental sensors. This evaluation board is part of the ST's iNEMO system and is tailored for swift and flexible development of applications requiring advanced motion and environmental sensing capabilities.
Key Features
- Integrated iNEMO inertial module: The board includes LSM6DSOX, a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.
- Environmental sensors: It is equipped with ST’s latest sensors, including the LPS22HH MEMS nano pressure sensor and the HTS221 humidity and temperature sensor for comprehensive environmental data acquisition.
- Machine Learning Core: The LSM6DSOX offers a Machine Learning Core that allows for in-sensor classification of motion data, reducing data processing on the host MCU and lowering power consumption.
- Wide range of applications: Suitable for wearable sensors, gaming and virtual reality input devices, smartphone and tablet sensor systems, and industrial applications.
- Advanced software support: Comes with software tools and libraries that help in the development of firmware and algorithms on the board.
- Flexible power management: Configurable to be powered through USB or external sources, allowing for versatile usage in different environments and applications.
Development Ecosystem
The evaluation board is supported by the STEVAL-MKI109V3 professional MEMS tool that provides a comprehensive development environment. This includes a high-performance STM32 microcontroller as a bridge between the sensors and a connected PC, enabling real-time data streaming and in-depth analysis.
Connectivity
Equipped with a DIL 24-pin socket, the STEVAL-MKI096V1 offers easy connection to an STM32 Nucleo development board. This fosters rapid prototyping and integration into existing systems with minimal effort.
Software and Firmware
The Unico GUI software allows for easy device configuration, data visualization, and logging, as well as firmware updates, ensuring that the STEVAL-MKI096V1 remains at the forefront of technology advancements.
With its robust sensor integration and extensive support for development, the STEVAL-MKI096V1 is an ideal choice for developers looking to create sophisticated applications that require reliable and precise motion and environmental sensing.
