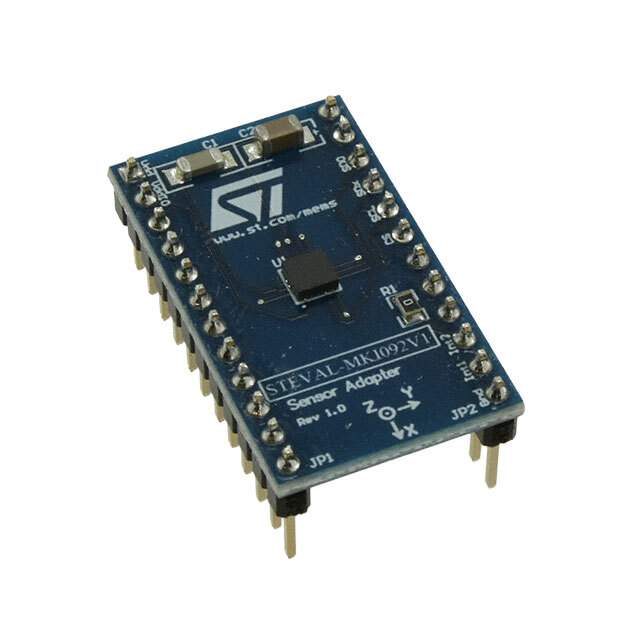

The STEVAL-MKI092V1, developed by STMicroelectronics, is a sophisticated adapter board designed to facilitate the evaluation of MEMS devices in the LGA-16 package. This adapter board is part of STMicroelectronics’ extensive portfolio of sensor evaluation boards, which are aimed at providing developers with a streamlined and flexible approach to sensor testing and development.

Key Features

• Compatibility: The STEVAL-MKI092V1 is specifically designed to be compatible with ST MEMS adapters that support the standard DIL 24-pin socket. This ensures that it can be used seamlessly with a wide range of ST evaluation boards.
• Flexibility: The board allows for the easy fitting of the supported LGA-16 MEMS sensor, which means that it can be quickly adapted for testing various sensors within the same package type.
• Quick Connection: It features a simple plug-and-play system that does not require any soldering, making it highly accessible for engineers and hobbyists alike.
• Size: The compact design of the board, with dimensions of 13.5 x 26.5 mm, ensures that it is not only easy to handle but also minimizes the space required for sensor evaluation setups.

Applications

The STEVAL-MKI092V1 is ideal for a wide range of applications, including but not limited to:

• Industrial sensing
• Consumer electronics evaluation
• Inertial module testing
• Prototype development
• Education and research

Package Contents

Upon purchasing the STEVAL-MKI092V1 adapter board, customers will receive:

• The STEVAL-MKI092V1 adapter board itself
• A brief overview and technical documentation to assist with getting started

Additional Resources

STMicroelectronics provides comprehensive technical support for the STEVAL-MKI092V1, including detailed datasheets, application notes, and software tools to aid in the development process.
