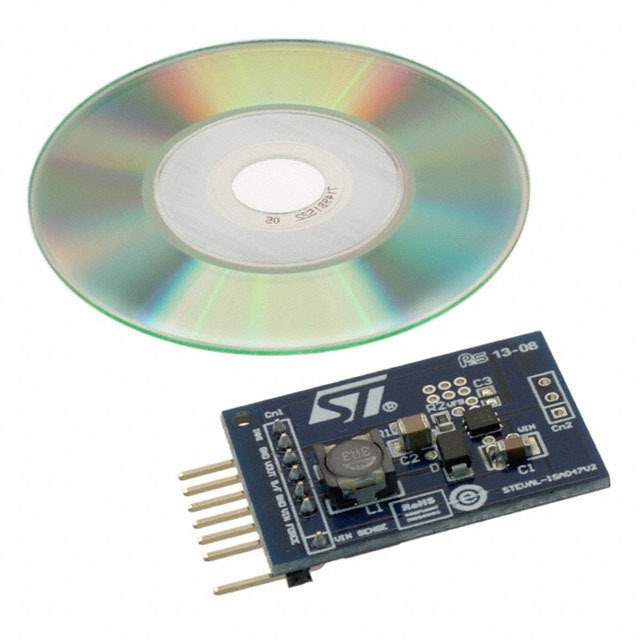

The STEVAL-ISA047V2 is an advanced evaluation board designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This evaluation board is specifically tailored for testing and assessing the performance of the L7987, a powerful and flexible 61 V, 3 A step-down switching regulator.

The L7987 regulator on the STEVAL-ISA047V2 is highly efficient, with an input voltage range that spans from 4.5 V to 61 V, making it an ideal solution for a wide array of applications. Its versatility is further enhanced by an adjustable output voltage that can be set from 0.8 V to VIN, catering to various design requirements. This feature, combined with a 3 A current capability, positions the STEVAL-ISA047V2 as a go-to platform for developers working on industrial, automotive, and consumer electronics.

The evaluation board is meticulously designed to showcase the L7987's features, such as its low dropout operation, which ensures continued performance even when the input voltage is close to the output voltage, and its synchronization capability, which allows for reduced EMI and the use of a smaller filter. The board also includes a range of protections like overcurrent, overvoltage, and thermal shutdown to safeguard the system during operation.

Engineers and developers will appreciate the STEVAL-ISA047V2's user-friendly layout, which offers easy access to all the regulator's pins, facilitating quick setup and modification. The board is also equipped with test points that provide convenient measurement of the regulator's efficiency, output voltage ripple, and other critical parameters.

With its robust design and comprehensive set of features, the STEVAL-ISA047V2 evaluation board is an invaluable tool for those looking to explore the capabilities of the L7987 regulator and develop efficient power supply solutions. Whether it's for prototyping or educational purposes, the STEVAL-ISA047V2 is an excellent resource for anyone working in the field of power electronics.
