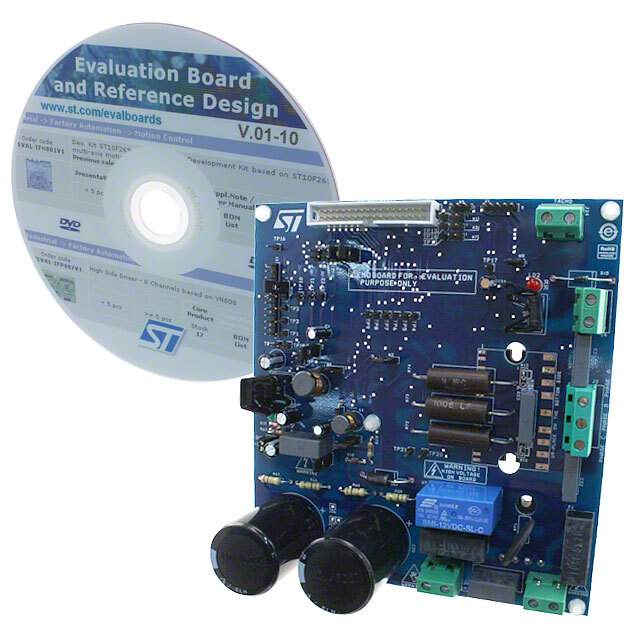

The STEVAL-IHM027V1 is a comprehensive development solution designed by STMicroelectronics to facilitate the design of motor control applications. This versatile evaluation board is specifically tailored for driving three-phase brushless DC (BLDC) motors using the advanced STMicroelectronics ST7MC microcontroller, which is equipped with an embedded MCU and dedicated motor control functions.

Key Features

• Integrated ST7MC microcontroller with a dedicated motor control coprocessor
• Supports three-phase BLDC motor control with Hall-effect sensors
• Power stage based on the L6230 driver capable of handling up to 48 V
• On-board debugging interface for software development and monitoring
• Flexible power supply options ranging from 8 V to 48 V
• Overcurrent and thermal protection for enhanced safety
• User-friendly software with multiple control algorithms

Applications

The STEVAL-IHM027V1 is suitable for a wide range of applications, including but not limited to:

• Home appliances (e.g., washing machines, refrigerators)
• Fans and HVAC systems
• Industrial automation
• Electric pumps
• Robotics and drones

Design Support

To ensure a smooth development process, STMicroelectronics provides extensive design support for the STEVAL-IHM027V1. This includes detailed documentation, application notes, and a dedicated software development kit (SDK) with example code. The board's layout is optimized for thermal performance and space-saving, making it an excellent choice for prototyping as well as for educational purposes.

Whether you're an experienced engineer or a student looking to delve into motor control, the STEVAL-IHM027V1 offers a reliable platform to accelerate the development cycle and help bring your projects to life with efficiency and precision.
