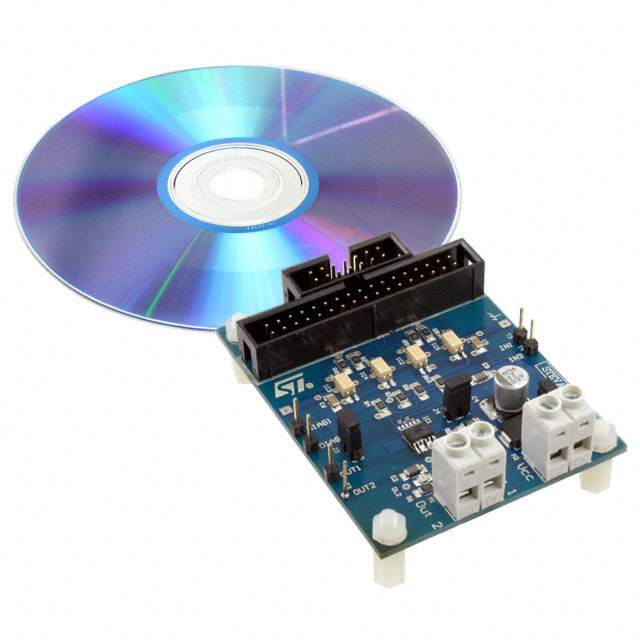

STEVAL-IFP010V1 - STMicroelectronics Interface Evaluation Board

The STEVAL-IFP010V1 from STMicroelectronics is a sophisticated evaluation board designed to demonstrate the capabilities of the ISO8200BQ, an octal high-side smart power solid-state relay. This evaluation board is an essential tool for engineers and designers who wish to explore the features and performance of the ISO8200BQ in their applications.

The ISO8200BQ is an integral part of the evaluation board, which is an 8-channel intelligent power switch for 24V industrial control systems. It provides a rich set of features including diagnostic functions, a serial peripheral interface (SPI), and over-temperature protection. These features make it an ideal choice for driving resistive, inductive, and capacitive loads.

The STEVAL-IFP010V1 is equipped with a wide range of input and output connectors, making it highly adaptable for various test scenarios. The evaluation board is designed to operate over a wide supply voltage range, catering to the needs of diverse industrial applications. It also includes an overvoltage clamp, under-voltage shutdown, load current limitation, and over-temperature shutdown with auto-restart, ensuring robust performance and high reliability.

The onboard diagnostic features enable the detection of open-load in off-state, short-circuit, over-temperature, and under-voltage conditions, providing valuable feedback for system monitoring and enhancing safety. The SPI interface allows for the daisy-chaining of multiple boards, facilitating the expansion of output channels without the need for additional control lines.

The STEVAL-IFP010V1 is a perfect choice for those looking to develop applications such as PLCs, industrial PC peripheral drivers, and factory automation equipment. Its design is optimized for ease of use, allowing for quick setup and integration into existing systems. The evaluation board comes with comprehensive documentation, including application notes and design schematics, to assist developers in the rapid prototyping and testing of their designs.

Overall, the STEVAL-IFP010V1 interface evaluation board is a highly versatile and reliable tool that showcases the robustness and advanced features of the ISO8200BQ smart power switch, making it an invaluable asset for industrial control system development.
