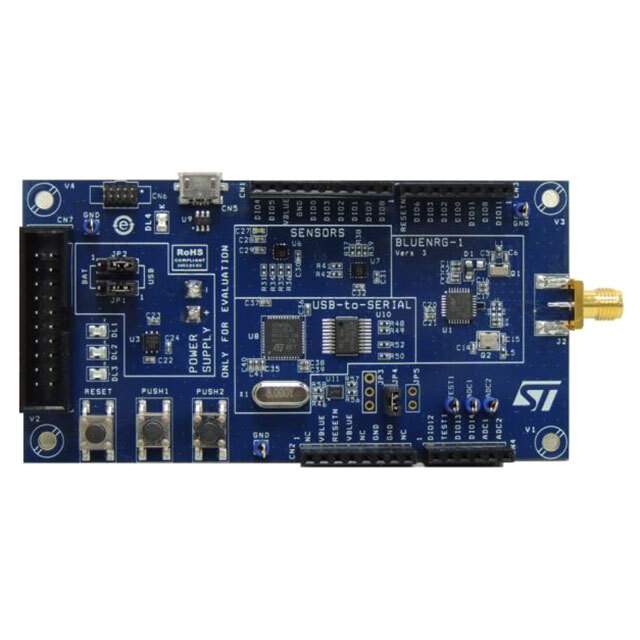

STEVAL-IDB007V1 Bluetooth Low Energy Evaluation Board

The STEVAL-IDB007V1 from STMicroelectronics is a comprehensive evaluation platform designed to provide a solution for developing and prototyping applications based on the Bluetooth Low Energy (BLE) technology. It is built around the BlueNRG-1, which is STMicroelectronics' energy-efficient, system-on-chip (SoC) tailored for BLE connectivity and applications.

Key Features:

• BlueNRG-1 SoC: Integrates a 32-bit ARM Cortex-M0 core with a BLE radio and an array of peripherals, making it suitable for a wide range of wireless applications.
• Integrated Balun: The board includes an integrated balun (BALF-NRG-01D3) that simplifies the antenna design requirements and reduces external component count.
• USB Interface: Comes with a USB interface for easy programming and communication with the host computer, providing a user-friendly development experience.
• Debugging and Programming: Features an ST-LINK/V2-1 debugger/programmer for in-situ programming and debugging, enhancing the development and troubleshooting process.
• Expansion Connectors: The evaluation board is equipped with Arduino Uno R3 connectors, enabling the use of a wide range of compatible expansion boards for additional functionalities.

Applications:

With its versatile feature set, the STEVAL-IDB007V1 is ideal for developing BLE-enabled applications such as smart sensors, IoT devices, wearable technology, home automation, and industrial monitoring systems.

Software Support:

STMicroelectronics provides a comprehensive software development kit (SDK) for the STEVAL-IDB007V1, which includes libraries, example applications, and a dedicated BLE stack to streamline the development process. The SDK is designed to work seamlessly with popular integrated development environments (IDEs), further simplifying the task of developing BLE applications.

Design Resources:

Designers can access a wealth of resources, including schematics, bill of materials (BOM), gerber files, and application notes, to facilitate the design-in process and accelerate time-to-market for their products.

Overall, the STEVAL-IDB007V1 evaluation board provides a flexible and comprehensive platform for engineers and developers looking to leverage the power and efficiency of Bluetooth Low Energy in their next wireless project.
