STMicroelectronics ST72F561J7TAE Microcontroller

The STMicroelectronics ST72F561J7TAE is a robust 8-bit microcontroller that combines high performance with versatile features to cater to a broad range of applications. This microcontroller is part of the ST7 family, which is renowned for its reliability and efficiency in embedded control systems.

At the heart of the ST72F561J7TAE is a high-density non-volatile memory, providing 56K bytes of Flash program memory. This generous memory capacity ensures ample space for complex application code and data storage. The Flash technology allows for in-application programming and full read-while-write capabilities, making the device flexible for software updates and data management.

The device operates at a wide voltage range of 3.0 to 5.5 volts, ensuring compatibility with various power supply configurations and making it suitable for both industrial and consumer applications. With an operating temperature range from -40°C to +85°C, the ST72F561J7TAE maintains reliable operation even in harsh environmental conditions.

Key features of the ST72F561J7TAE include:

• 10-bit ADC with up to 16 channels, providing precise analog-to-digital conversion for sensor interfacing and data acquisition.
• Three timers, including a main clock counter and two additional 16-bit timers, which support PWM (Pulse Width Modulation) outputs and input capture for accurate timing and control tasks.
• Synchronous and asynchronous serial communication interfaces, such as SPI and SCI, enabling easy integration with peripheral devices and other microcontrollers.
• Up to 52 programmable I/O pins, offering extensive interface options and the flexibility to handle multiple input and output configurations.
• Integrated watchdog and low voltage detector circuits, which enhance system reliability and prevent system failures due to unexpected voltage drops or software errors.

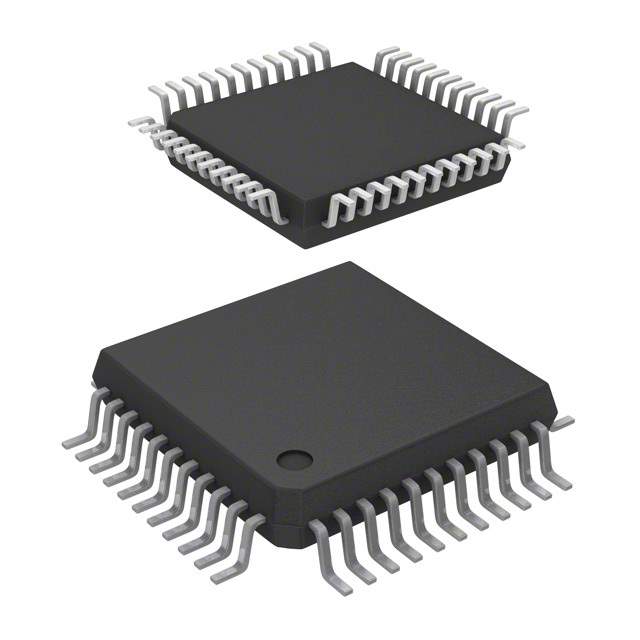

The ST72F561J7TAE is housed in a 64-pin LQFP (Low-profile Quad Flat Package) that provides a compact footprint while allowing for excellent thermal performance and easy integration into PCB designs.

Overall, the ST72F561J7TAE from STMicroelectronics is a powerful and feature-rich microcontroller that is ideal for designers looking to implement sophisticated control systems in automotive, industrial, consumer, and many other embedded applications.
