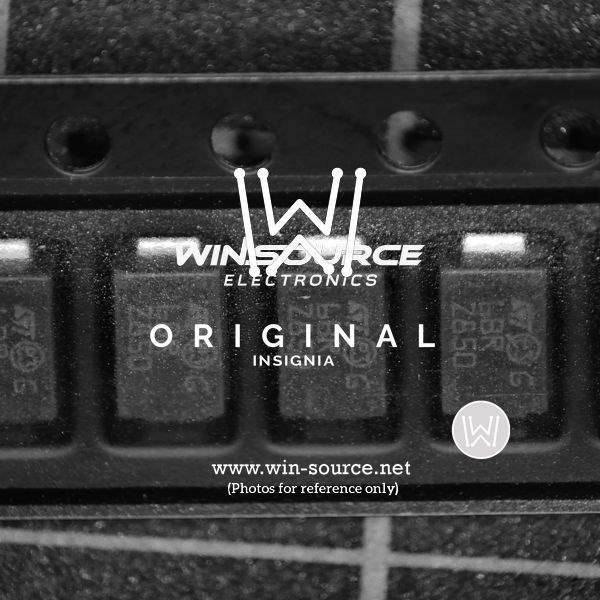

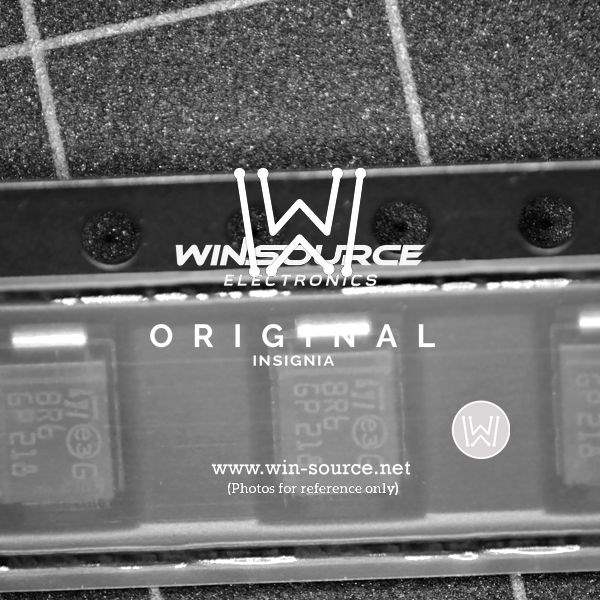

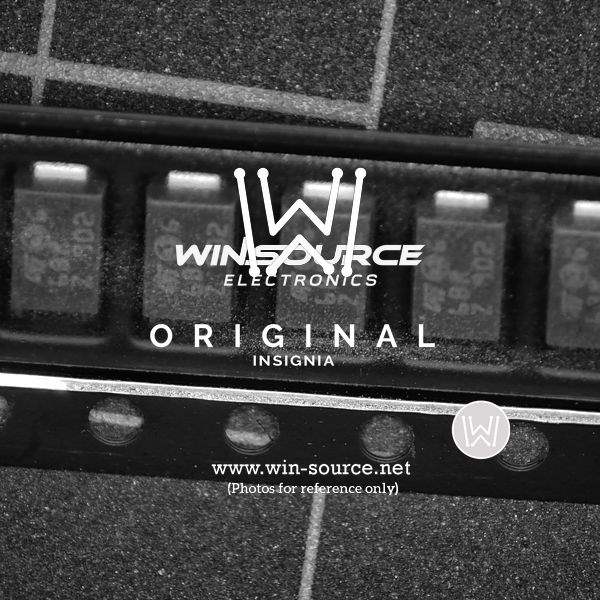

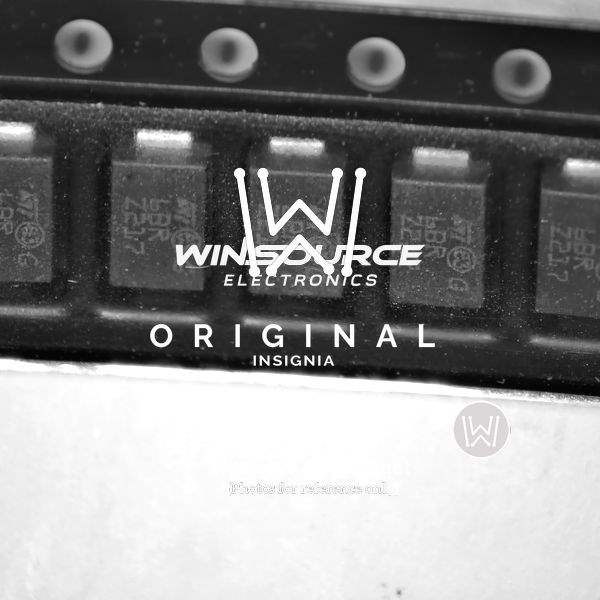

Product Overview: SMA6J40CA-TR

The SMA6J40CA-TR is a robust transient voltage suppression (TVS) diode designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This high-quality component is specifically engineered to protect sensitive electronic equipment from voltage spikes and surges, ensuring reliability and performance in a variety of applications.

Key Features

• Transient Protection: The SMA6J40CA-TR can clamp transient overvoltages and dissipate the energy effectively, safeguarding downstream components from damage.
• Stand-Off Voltage: This TVS diode has a stand-off voltage of 40V, making it suitable for a wide range of applications that require this level of voltage protection.
• Peak Pulse Power: It offers a peak pulse power dissipation of 600W (10/1000μs), ensuring that even significant power spikes are managed without compromising the integrity of the protected circuit.
• Bi-Directional Clamping: As a bi-directional TVS, the SMA6J40CA-TR provides symmetrical protection for AC lines or bidirectional data lines.
• Low Leakage Current: The device features a low leakage current, minimizing power loss when the system is in standby mode.
• Package: It comes in a compact SMA (DO-214AC) package, allowing for efficient use of board space and ease of integration into a variety of electronic assemblies.

Applications

The SMA6J40CA-TR is suitable for a broad spectrum of applications, including:

• Consumer electronics such as TVs, computers, and gaming consoles
• Telecommunication systems
• Power supply units
• Industrial control systems
• Automotive electronics

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The SMA6J40CA-TR TVS diode is no exception, with rigorous testing and quality control measures in place to ensure consistent performance. Its robust construction makes it a preferred choice for designers looking to enhance the durability and longevity of their electronic systems.

With its combination of features, the SMA6J40CA-TR from STMicroelectronics represents a smart solution for protecting sensitive circuits from voltage transients in a wide array of applications.
