STMicroelectronics SM15T39CA Transient Voltage Suppressor

The SM15T39CA is a high-performance transient voltage suppressor (TVS) diode designed by STMicroelectronics to protect sensitive electronic equipment from voltage transients induced by system inductance and lightning. This robust component is part of STMicroelectronics' SM15T series, engineered to safeguard voltage-sensitive devices from destruction or degradation. It is especially suited for applications requiring high reliability and surge tolerance, making it an ideal choice for industrial, automotive, and telecommunications sectors.

The SM15T39CA is characterized by its bidirectional clamping feature, which provides symmetrical protection for electronic circuits from voltage spikes in both positive and negative directions. With a standoff voltage of 33.3 volts and a minimum breakdown voltage of 37 volts, this TVS diode is capable of handling transient overvoltage events up to 39 volts. The device is able to dissipate a significant amount of energy with a peak pulse power of 1500W (10/1000μs), ensuring that connected components remain safe during surge events.

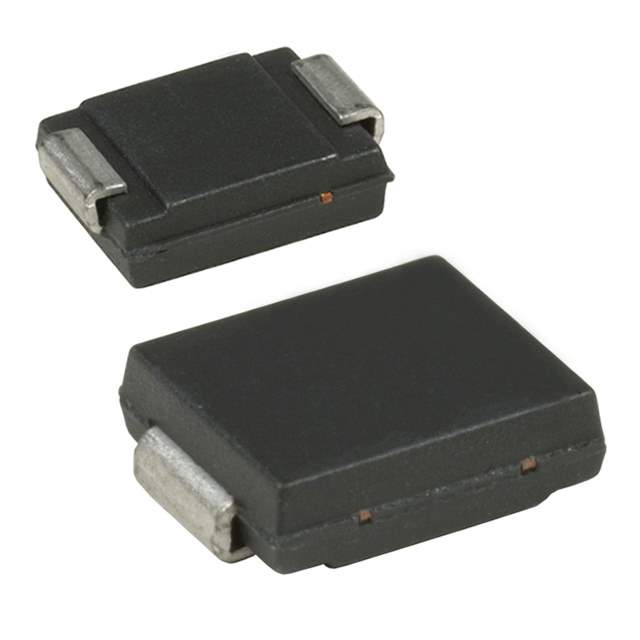

Manufactured in a DO-214AB (SMC) package, the SM15T39CA is designed for surface-mount applications, allowing for efficient assembly and space-saving on printed circuit boards (PCBs). The compact form factor does not compromise its performance, as it provides fast response times to transient events, typically in the picosecond range, which is critical for protecting fast-sensitive circuits.

The SM15T39CA also features a low incremental surge resistance and is compliant with the IEC 61000-4-2 and IEC 61000-4-5 surge immunity standards, which are common benchmarks for electromagnetic compatibility (EMC). This compliance ensures that the device can withstand electrostatic discharge (ESD) and electrical fast transients (EFT), which are common causes of electronic equipment failure.

Overall, the SM15T39CA by STMicroelectronics is a reliable and efficient solution for circuit protection in a wide range of applications. Its robust design, high surge capability, and compliance with international standards make it an essential component for designers looking to enhance the durability and longevity of their electronic products.
