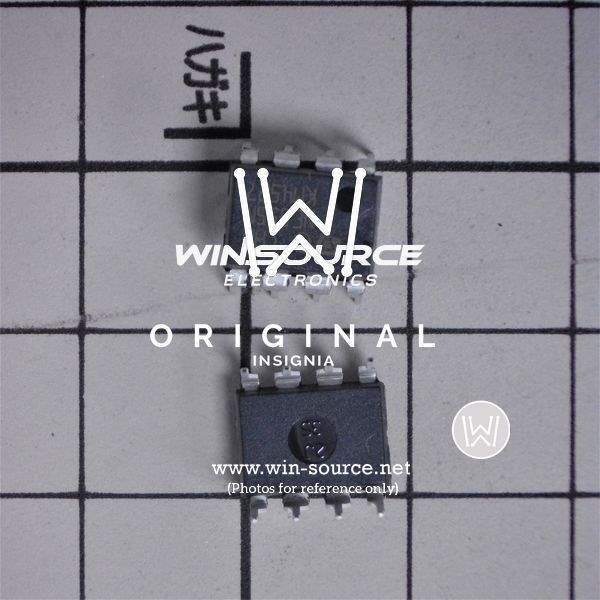

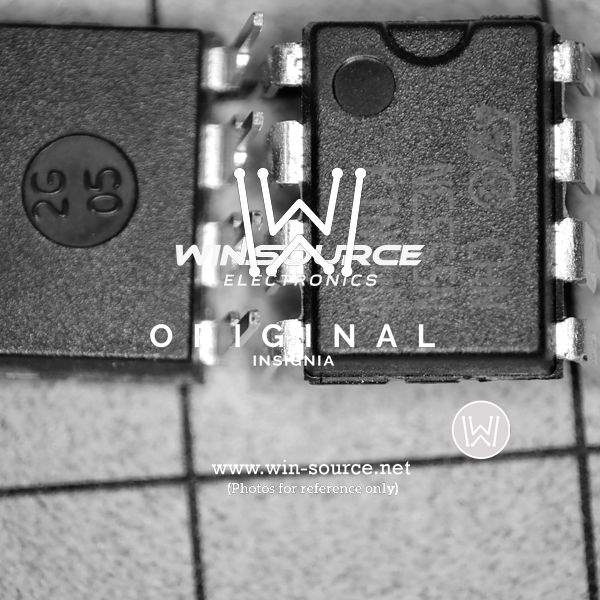

STMicroelectronics NE555N Timer IC

The NE555N from STMicroelectronics is a highly versatile and widely acclaimed timer IC that has been an industry standard for many years. This precision timer device is capable of producing accurate time delays or oscillation, making it an essential component in a wide range of electronic applications. The NE555N is designed for use in both monostable (one-shot) and astable (free-running) modes, providing a robust and flexible solution for timing-related functions.

In the monostable mode, the NE555N can produce accurate time delays ranging from microseconds to hours. This feature is commonly utilized in applications such as timers, pulse generation, and sequential timing which are essential in various electronic devices. In the astable mode, the NE555N operates as an oscillator, generating a continuous output of square waves which can be adjusted for different frequencies and duty cycles. This makes it perfect for use in LED blinkers, tone generation, and clock pulses for digital circuits.

The NE555N operates on a wide voltage range from 4.5V to 16V, providing a high level of flexibility for different power supply requirements. Its output can drive up to 200mA of load, which enables it to directly control relays, solenoids, and other high-current devices. The timer IC also features a high current sinking capability, which is crucial for driving TTL or CMOS loads.

STMicroelectronics has designed the NE555N with a temperature stability of 0.005% per degree Celsius, ensuring reliable performance over a wide temperature range. The IC also includes a reset function, which can be used to terminate any timing interval, providing additional control to the user.

The NE555N is available in an 8-pin DIP (Dual In-line Package) making it easy to integrate into both prototyping and production environments. Its robust design and ability to withstand significant voltage and temperature variations make it a durable and reliable choice for any timing application.

Whether you are designing consumer electronics, industrial controls, or hobbyist projects, the STMicroelectronics NE555N timer IC is an indispensable component that offers simplicity, efficiency, and precision.
