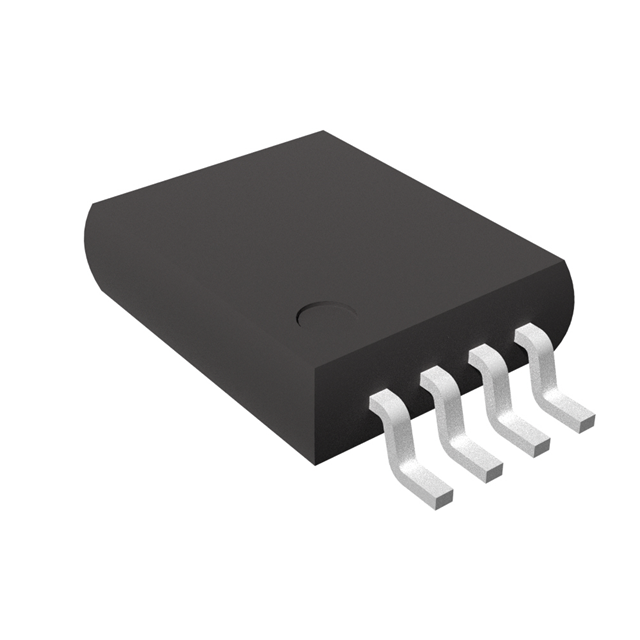

The RS5C372B-E2 is a CMOS real-time clock (RTC) IC manufactured by Ricoh. It's designed to provide accurate timekeeping and calendar functions with low power consumption. This RTC is suitable for a variety of applications requiring precise time management.
Applications
- Portable Devices: Used in devices such as handheld computers, mobile phones, and personal digital assistants (PDAs) to maintain accurate time even when the main power is off.
- Consumer Electronics: Integrated into devices like digital cameras, audio players, and video recorders for time-stamping media files and scheduling functions.
- Industrial Control Systems: Employed in industrial automation equipment, data loggers, and monitoring systems to provide accurate time references for data acquisition and control processes.
- Office Automation Equipment: Used in printers, fax machines, and copiers for time-stamping documents and scheduling tasks.
- Security Systems: Integrated into alarm systems and access control systems to maintain accurate time for event logging and scheduling.
Features
- Real-Time Clock: Provides accurate timekeeping with functions for seconds, minutes, hours, day of the week, date, month, and year.
- Calendar Function: Includes a calendar function that automatically adjusts for leap years.
- Low Power Consumption: Designed for low current consumption to extend battery life in portable applications.
- I2C Interface: Uses the I2C serial interface for easy communication with a microcontroller or other system components.
- Automatic Backup Switchover: Supports automatic switching to a backup battery in case of main power failure.
- Alarm Function: Features an alarm function that can be set to trigger an interrupt at a specific time.
- Timer Function: Includes a programmable timer function for generating periodic interrupts.
- 32.768 kHz Crystal Oscillator: Incorporates a 32.768 kHz crystal oscillator for accurate timekeeping.
Benefits
- Accurate Timekeeping: Ensures precise time and date information for various applications.
- Low Power Consumption: Extends battery life in portable devices and reduces overall system power consumption.
- Easy Integration: The I2C interface simplifies integration with microcontrollers and other system components.
- Reliable Operation: Provides reliable timekeeping even during power failures due to the automatic backup switchover function.
- Versatile Functionality: The alarm and timer functions enable a wide range of time-based applications.
Additional Details
The RS5C372B-E2 operates on a supply voltage typically between 1.8V and 5.5V. It is available in a small package, making it suitable for space-constrained applications. The I2C interface supports standard and fast modes. The device also includes a built-in power-on reset circuit to ensure proper initialization. The temperature range typically spans from -40°C to +85°C.
