The M27C512-45XF1 is a high-speed 512 Kbit EPROM (Erasable Programmable Read-Only Memory) from the renowned semiconductor manufacturer, STMicroelectronics. This integrated circuit is designed to offer a reliable storage solution for applications that require data retention without power, with the added flexibility of being able to reprogram the memory as needs evolve.

With an access time of 45ns, the M27C512-45XF1 delivers swift performance that is suitable for time-critical applications. This component is organized as 64K by 8 bits, which provides a significant amount of storage capacity for firmware, boot code, or configuration data that needs to be preserved across power cycles.

Key Features

• Memory Size: 512 Kbit (64K x 8)
• Access Time: 45ns, enabling fast read operations.
• Single 5V Power Supply: Simplifies power management within the system.
• Programmable Chip Enable and Output Enable: Provides control over memory access and minimizes power consumption.
• Low Power Consumption: Features standby and active modes to optimize power usage.
• Extended Temperature Range: Suitable for industrial applications with operating temperatures from -40°C to +85°C.
• Programming Voltage: 12.75V ± 0.25V

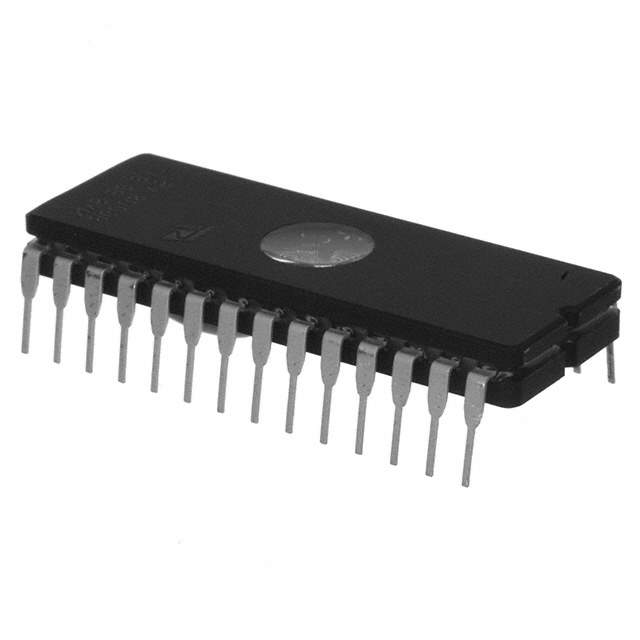

• Package: Offered in a 28-pin CERDIP (Ceramic Dual In-line Package) for robustness and reliability.

Applications

The M27C512-45XF1 is versatile and can be used across various applications, including but not limited to:

• Embedded systems
• Microcontroller-based applications
• Boot memory for computers and servers
• Telecommunications
• Automotive electronics
• Industrial control systems

Overall, the M27C512-45XF1 from STMicroelectronics is an excellent choice for designers looking for a robust, non-volatile memory solution with quick access times and a proven track record in a wide array of applications. Its reprogrammable nature and low power consumption make it an economical and environmentally friendly option for modern electronic designs.
