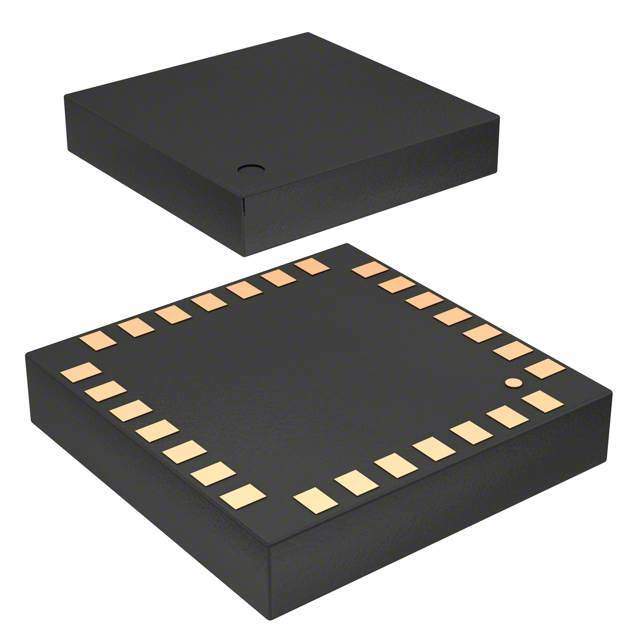

STMicroelectronics LSM303DLMTR 3D Magnetometer and Accelerometer Module

The LSM303DLMTR from STMicroelectronics is a compact, high-precision module that combines a 3D digital linear acceleration sensor with a 3D digital magnetic sensor in one breakthrough package. This versatile module is designed to cater to the growing demand for advanced navigation and motion-sensitive features in consumer electronics.

The accelerometer component of the LSM303DLMTR is capable of measuring acceleration up to ±16 g, while the magnetometer offers a full-scale magnetic field detection range from ±1.3 to ±8.1 gauss. Both sensors feature 16-bit data output, ensuring high-resolution measurements that are essential for accurate motion detection and position tracking.

One of the key advantages of the LSM303DLMTR is its small form factor. Housed in an LGA package that measures just 3x3x1 mm, it is perfect for space-constrained applications such as smartphones, gaming devices, and wearable technology. Despite its small size, it is packed with powerful features like programmable interrupt generators for motion detection, magnetic field detection, and click/double-click recognition, which can be used to optimize power consumption by reducing the need for continuous data processing by the host controller.

Engineered for ease of integration, the LSM303DLMTR communicates with the host system via an I2C serial interface, allowing for straightforward connection to a microcontroller or processor. It also supports a wide operating voltage range from 2.16 to 3.6 V, making it compatible with a variety of power supply configurations.

STMicroelectronics has also prioritized power efficiency in the design of the LSM303DLMTR. The module includes power-down and sleep modes, which are instrumental in extending battery life in portable devices. Additionally, the LSM303DLMTR has embedded self-test capabilities that can verify the functioning of both sensors after the manufacturing process and during regular operation.

Overall, the LSM303DLMTR is a robust, high-performance module that provides a flexible solution for a wide range of applications requiring reliable 3D sensing capabilities. Its combination of advanced features, small size, and power efficiency makes it an ideal choice for the next generation of innovative, motion-enabled devices.
