STMicroelectronics LSM303DLHTR LGA - 3D Magnetometer and Accelerometer Module

The LSM303DLHTR is a high-performance system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor, manufactured by STMicroelectronics. This compact module provides a versatile and powerful solution for advanced positioning and motion sensing applications.

Key Features

• 3D Accelerometer: Measures linear acceleration in three perpendicular axes with selectable full scales of ±2g/±4g/±8g and high-resolution output data.
• 3D Magnetometer: Captures magnetic field strength in three dimensions, enabling accurate compass and navigation functionalities.
• High Precision: The module's high-resolution data and low-power operation make it ideal for precision applications in mobile and handheld devices.

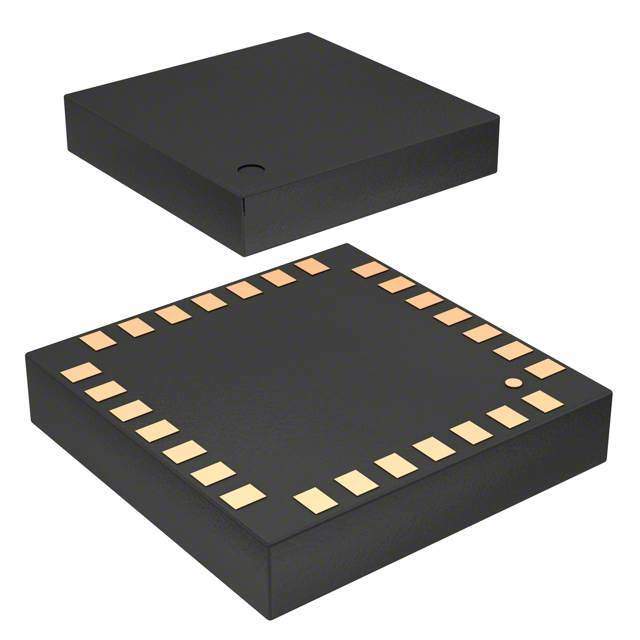

• Compact Design: Housed in a small LGA package (Land Grid Array), the LSM303DLHTR is designed for space-constrained applications.
• Interface: The device supports an I2C serial bus and an SPI serial interface, ensuring easy integration with most microcontrollers.

Applications

The LSM303DLHTR is suitable for a wide range of applications, including:

• Mobile phones, tablets, and GPS systems for navigation and orientation features.
• Game and virtual reality input devices, where motion detection is crucial.
• Industrial and robotics applications for precise control and positioning.
• Personal fitness and healthcare devices that track movement and activity.

Technical Specifications

The LSM303DLHTR by STMicroelectronics is a testament to the company's commitment to providing innovative, high-quality sensors for the modern world's technological needs. Whether for personal devices or industrial applications, this module offers the precision, reliability, and versatility required for cutting-edge motion and orientation sensing.
