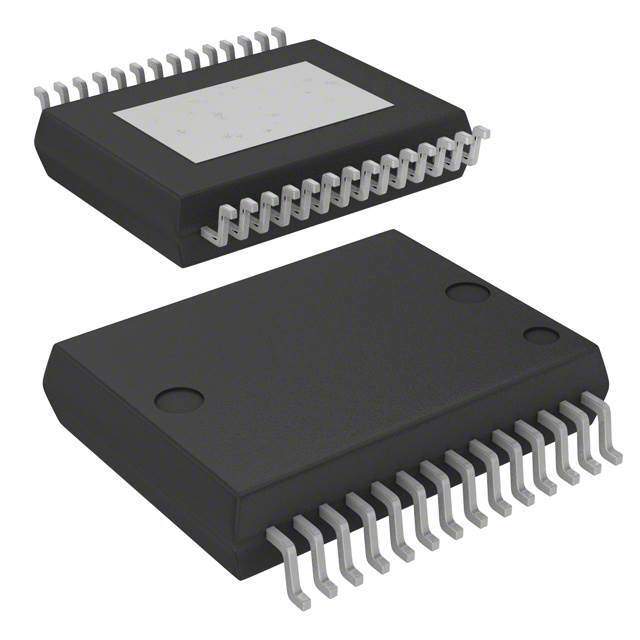

The L9733XP from STMicroelectronics is a high-performance, octal low-side driver integrated circuit designed to manage power loads in automotive applications. This advanced device is particularly suitable for driving non-inductive loads, such as lamps and LEDs, as well as inductive loads like relays and solenoids, providing a robust solution for the modern automotive environment.

Key Features

• Voltage Range: The device operates over a wide supply voltage range, making it versatile for various automotive voltage requirements.
• Output Current: Each channel of the L9733XP can deliver up to 0.9A of continuous current, providing sufficient power for most low-side driving applications.
• Channel Configuration: The octal configuration allows for the control of eight separate loads through one integrated circuit, reducing the complexity and space requirements of the control system.
• Diagnostic Features: Built-in diagnostic functions provide feedback on the status of each channel, including open load detection, overtemperature shutdown, and short circuit protection, enhancing system reliability and safety.
• Serial Interface: A serial peripheral interface (SPI) enables communication with microcontrollers for control and diagnostics, facilitating integration into complex automotive systems.

Applications

The versatility of the L9733XP makes it an ideal choice for a variety of automotive applications, including but not limited to:

• Body control modules
• Automotive lighting systems
• Engine management systems
• Power distribution systems

Reliability and Protection

STMicroelectronics has designed the L9733XP with reliability in mind. The device includes various protection features, such as overtemperature protection, which prevents damage from overheating, and non-dissipative overload protection, which safeguards the device and the load during short-circuit conditions. These features ensure the L9733XP operates reliably in the harsh conditions typically found in automotive environments.

Overall, the L9733XP from STMicroelectronics represents a robust, feature-rich solution for automotive power load management, offering designers a compact, efficient, and reliable component for their system designs.
