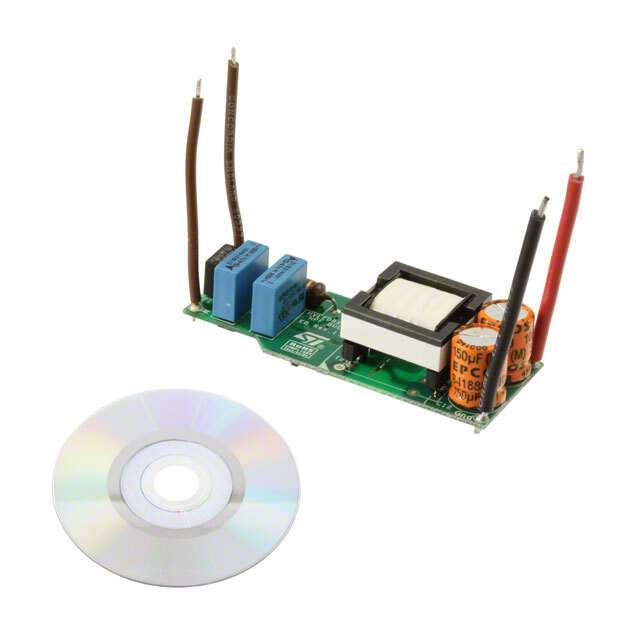

EVALHVLED815W15 - High-Power LED Driver Evaluation Board from STMicroelectronics

The EVALHVLED815W15 is a state-of-the-art evaluation board designed by STMicroelectronics for testing and measuring the performance of high-power LED drivers. This evaluation platform is specifically tailored for LED lighting applications that require reliable, efficient, and high-brightness solutions. The board is based on the HVLED815PF controller, which is an advanced LED driver IC capable of managing wide input voltage ranges and delivering constant current to ensure uniform brightness across LED strings.

Featuring an input voltage range from 90 V to 265 V AC, the EVALHVLED815W15 is suitable for a wide array of global lighting applications, from residential and commercial lighting to industrial illumination. The board is designed to drive a single LED string with a maximum power of 15 W, making it an excellent choice for high-performance lighting systems. The HVLED815PF controller on the board utilizes a quasi-resonant zero-voltage switching (ZVS) topology, which significantly improves the efficiency of the power conversion process, resulting in lower energy consumption and reduced heat generation.

The EVALHVLED815W15 comes equipped with numerous features that facilitate easy testing and development. It includes overcurrent, overvoltage, and thermal protection, safeguarding the LEDs and the driver circuitry from potential damage caused by abnormal operating conditions. The board also provides an adjustable output current setting, which allows users to customize the brightness levels according to their specific requirements.

With its compact design and comprehensive protection features, the EVALHVLED815W15 evaluation board is an ideal tool for engineers and designers looking to evaluate and prototype high-power LED lighting solutions. Whether it's for developing new products or improving existing lighting systems, this evaluation board from STMicroelectronics offers a versatile and user-friendly platform for pushing the boundaries of LED technology.

For further information, datasheets, and technical support, users can access STMicroelectronics' extensive online resources, ensuring a smooth development process from initial testing to final product design.
